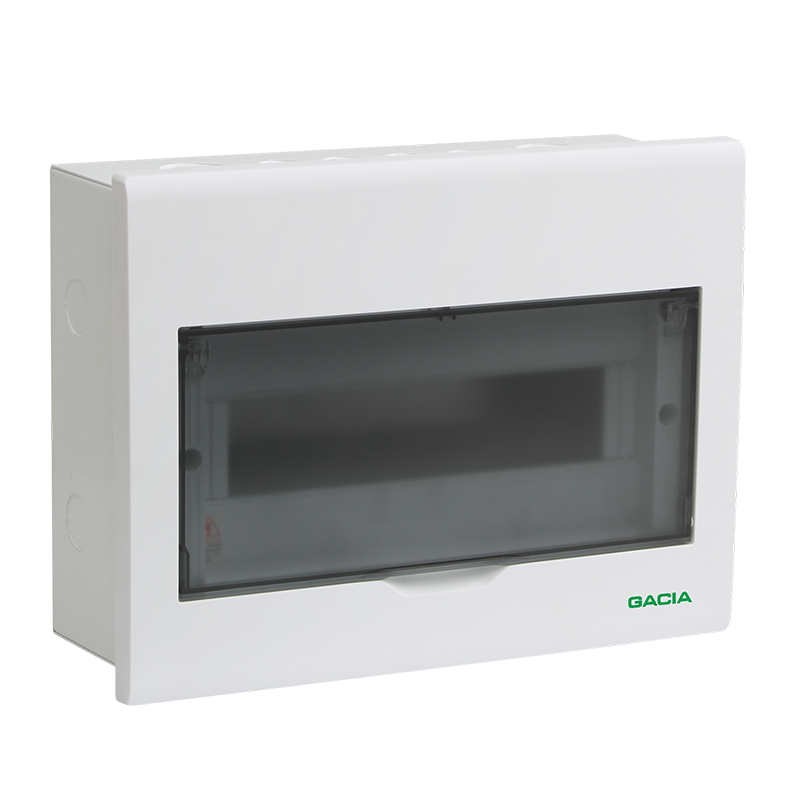

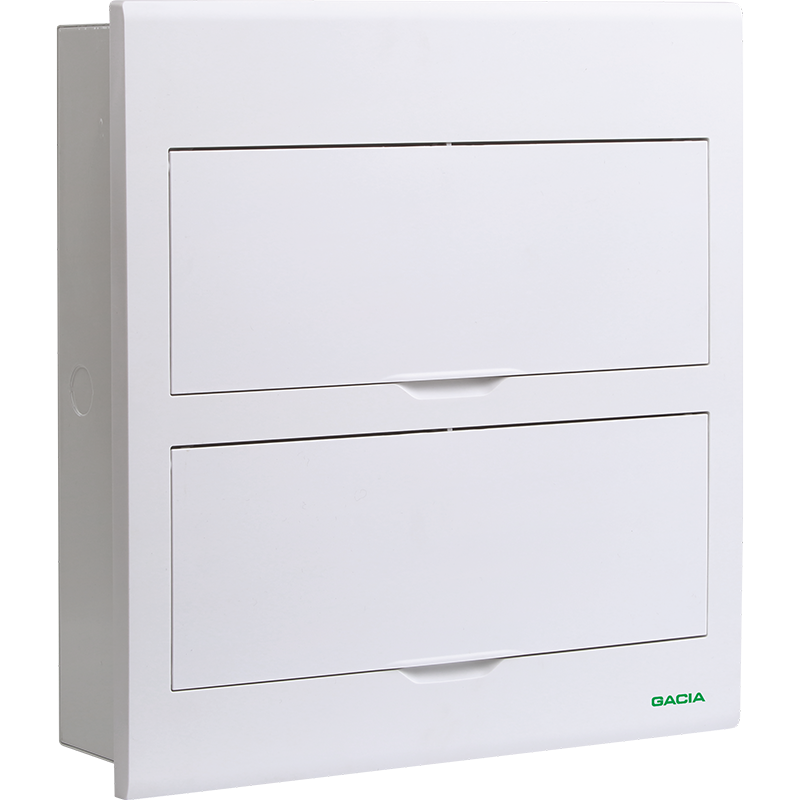

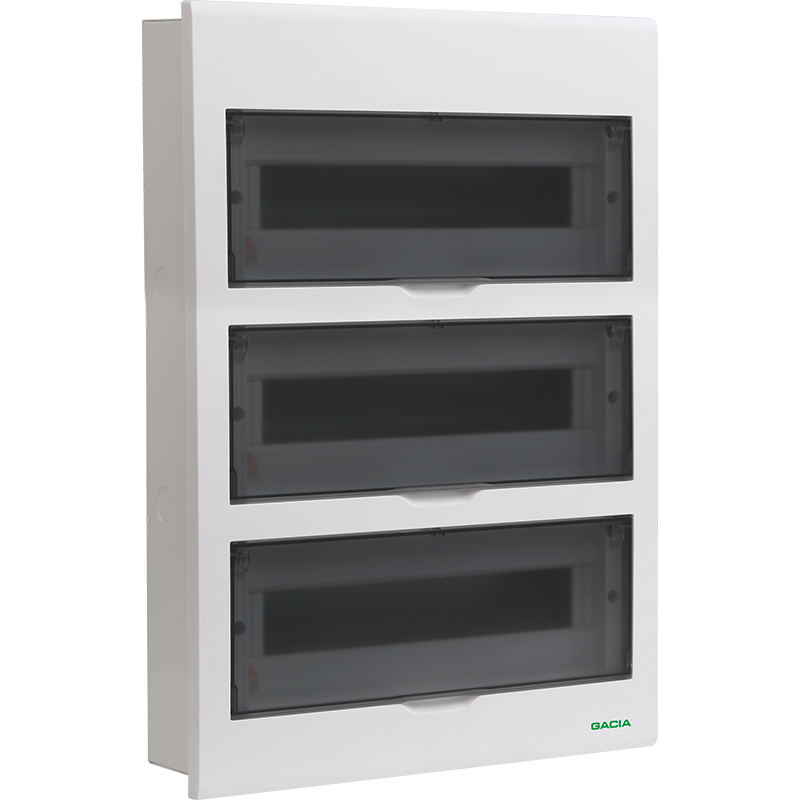

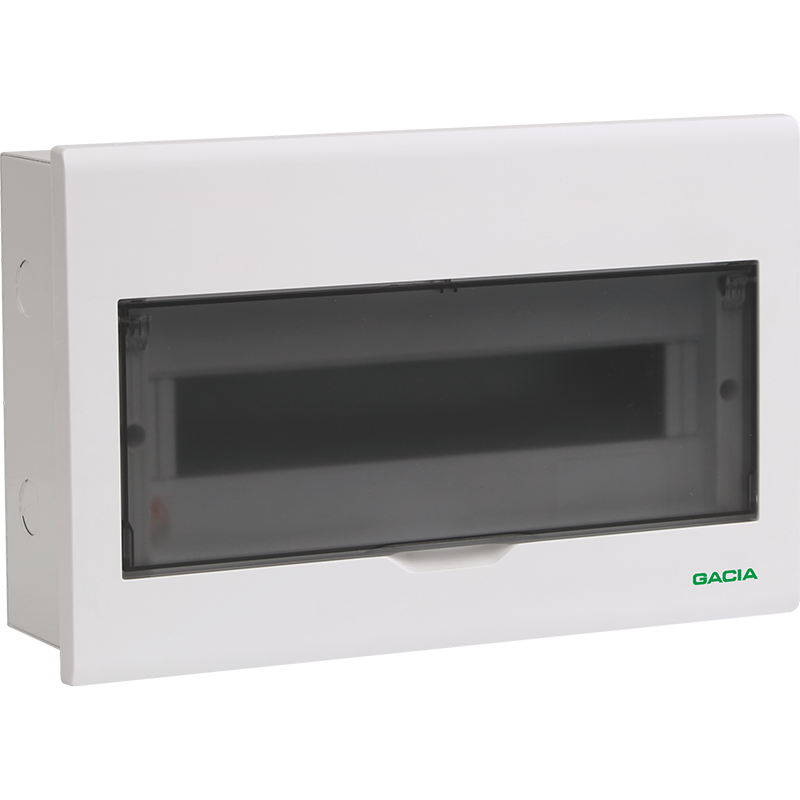

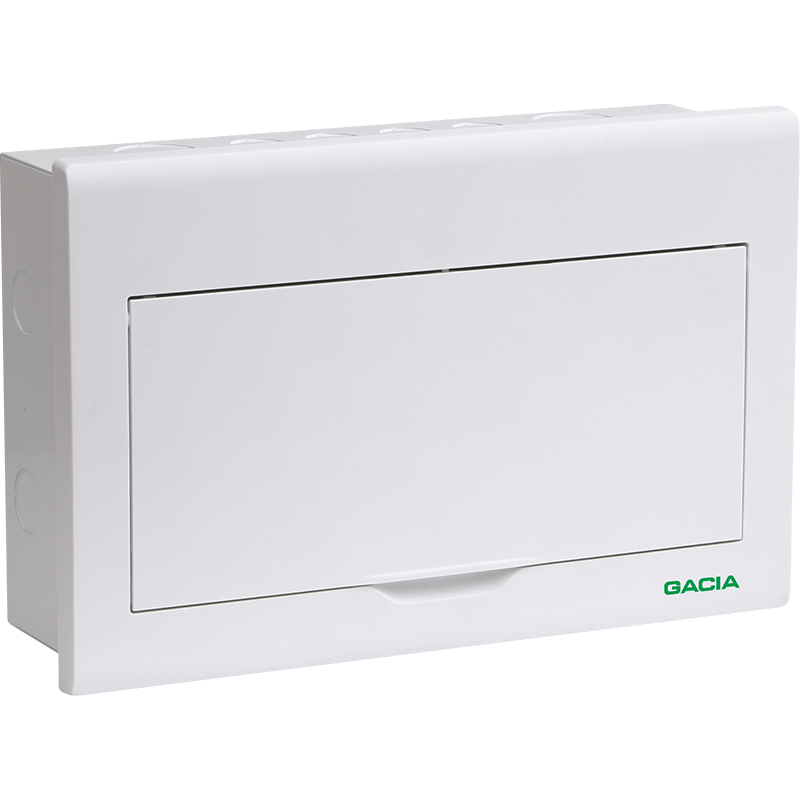

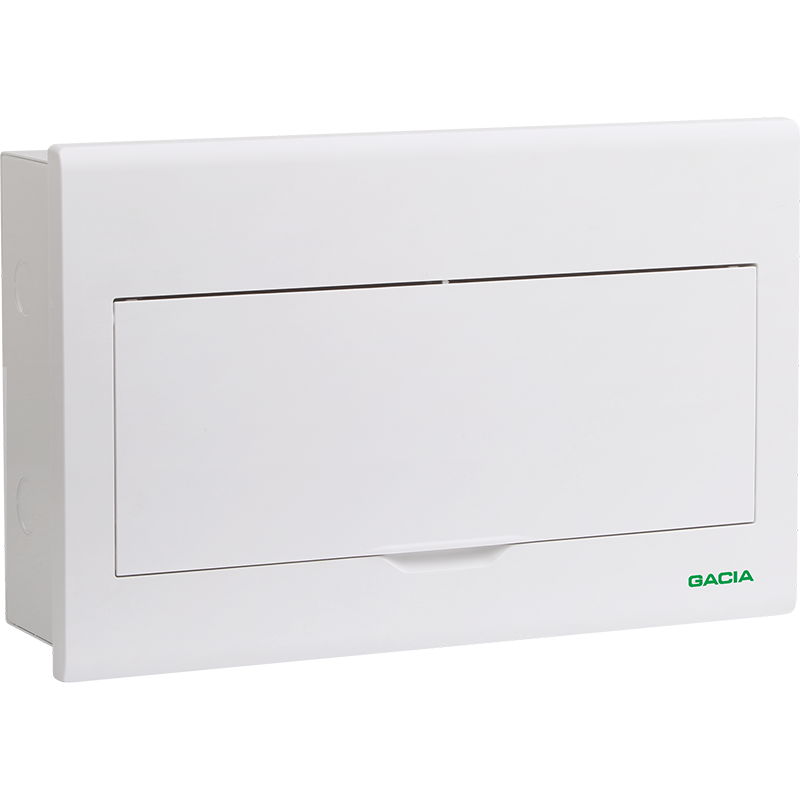

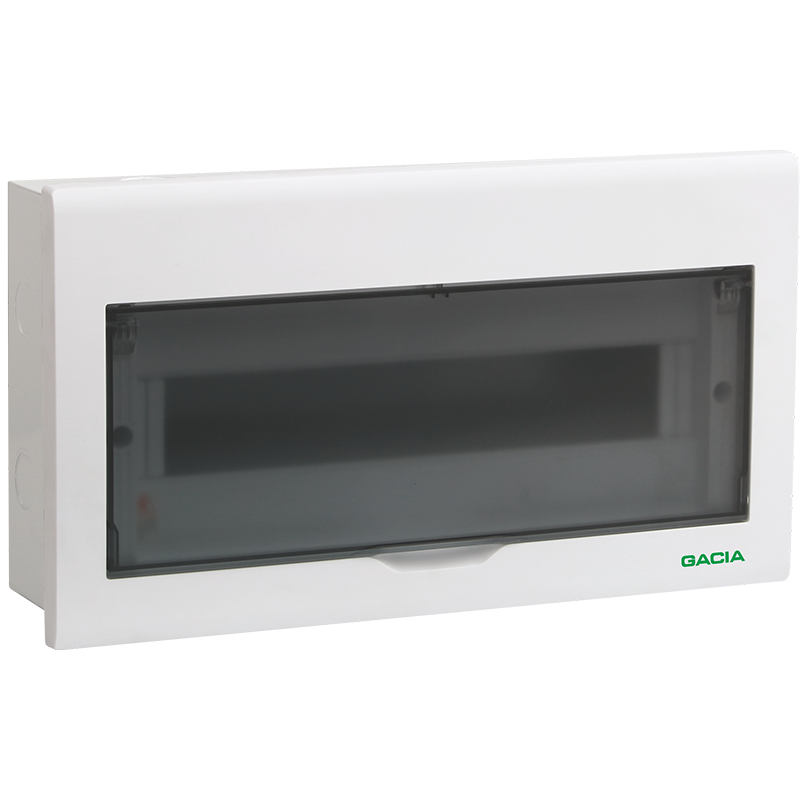

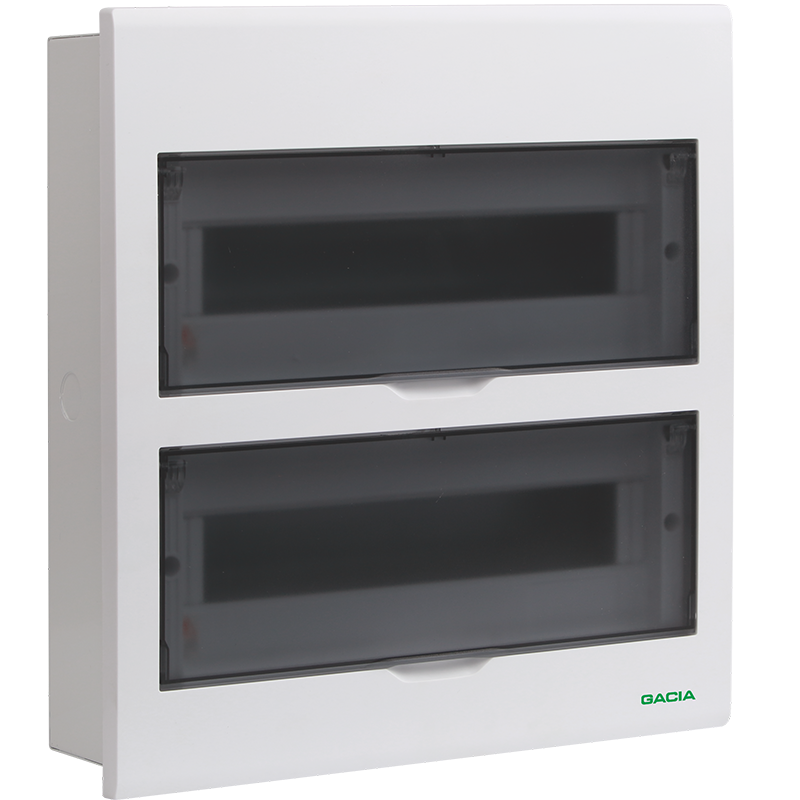

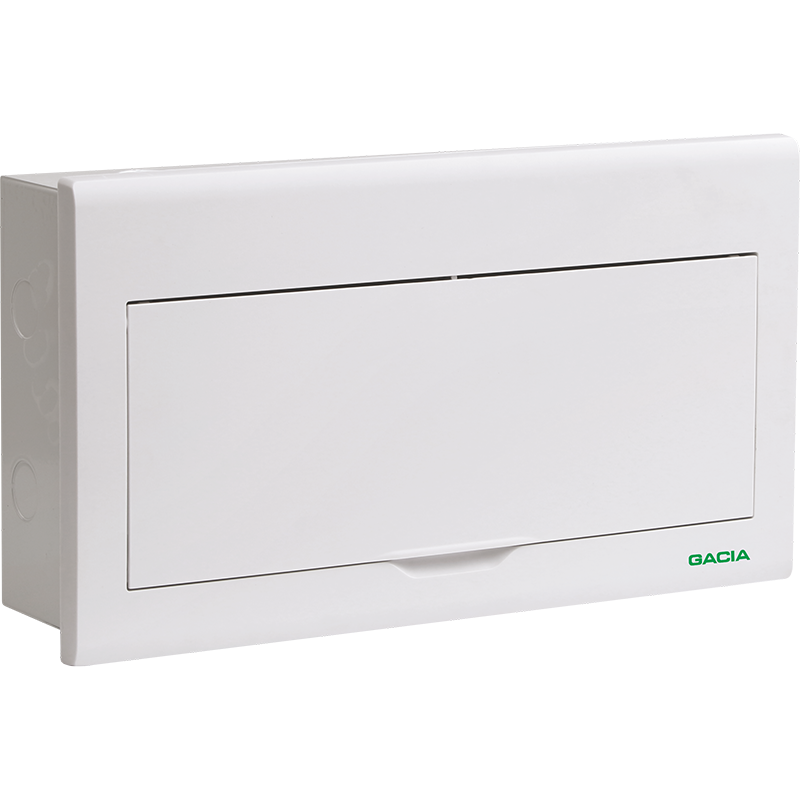

BE Series Power Distribution Box

The BE Series indoor distribution box is designed to make a small but important part of the building look cleaner, more professional, and safer. Built for low-voltage indoor applications, it offers 4-way to 63-way options with transparent or opaque covers. Durable ABS and PC materials, an independent hinge structure, and ready-to-use accessories help deliver a practical, installer-friendly solution for modern panels.

GACIA’s system expansion devices includes a wide range of products, helping you build a complete and safe low-voltage electrical system with greater flexibility, stronger protection, and easier integration.

    Contact us

    Key Features

    • Compact Indoor Presence

      - 4-way to 63-way options

      - Transparent or opaque covers

      - Keeps interiors neat and tidy

    • Reliable Door Structure

      - Independent hinge design

      - Smooth, controlled door movement

      - Stainless steel open-position lock

    • Installation and Protection Ready

      - ABS body with PC cover

      - Supports FS, SPD, indicators

      - Works with P Series breakers

    Tech Specs

    Product Name BEP/D Series Distribution Box Installation Way Embedded installation
    Product Model 4 bits, 10 bits, 13 bits, 16 bits, 18 bits, 21 bits, 24 bits, 32 bits, 42 bits, 63 bits Holder The internal guide rail bracket is composed of all metal parts, with lifting androtating adjustment function and pre-suspension function.
    Bottom Box Material Sprayed bottom box: high quality cold rolled steel sheet, with electrostatic sprayed surface.
    Galvanized bottom box: made of high quality galvanized steel sheet.    		 Each Standard Width 18mm Standard Width
    Side Dimension of Single Row Bottom Box ① 4bits170x80mm
    ② 10~21bits192x80mm
    ③ 24bits230x90mm    		 Cross-section size of the terminals 4~24 bits 6x10mm
    32~42 bits 6.4x12mm
    63 bits 8x12mm
    A Safe Grounding System The box body is grounded with a standard position ground screw and two auxiliary grounding pieces.
    The single row has one grounding screw, and the double row and the three rows are equipped with two grounding screws.    		 Rated voltage ~AC400V 50-60HZ
    Panel Material The base of the panel and the white movable door are all made of high-quality ABS material, and the whole is white.
    The transparent door is made of high quality PC material.    		 Rated current/maximum continuous input current 55A(4~24 bits)
    63A (32~42 bits)
    80A (63 bits)
    Panel Installation Way Screw Fixation Standard GB17466.1-2008, GB17466.24-2008
    Protection Level IP40
