Understanding Miniature Circuit Breakers: An Overview
Miniature circuit breakers (MCBs) play a crucial role in electrical installations by providing overcurrent protection to circuits and ensuring safety in residential, commercial, and industrial applications. According to the International Electrotechnical Commission (IEC), MCBs are designed to automatically disconnect a circuit when it detects an overload or a short circuit, preventing damage to appliances and reducing fire hazards. The global miniature circuit breaker market is projected to grow at a CAGR of around 5% between 2022 and 2030, driven by increasing investments in infrastructure and rising awareness about electrical safety.
Understanding the technical specifications of MCBs is essential for selecting the right device for specific needs. MCBs are rated by their current-carrying capacity, typically ranging from 0.5A to 125A, with their operating characteristics categorized into types B, C, and D, based on their trip curves. Type B MCBs, for instance, are suitable for residential applications with low inrush current, while Type C and D are used in commercial and industrial settings where equipment may require higher starting currents. The performance of these devices, including their response time to faults, remains critical, as studies indicate that an MCB can trip in less than 0.1 seconds during a short circuit, significantly minimizing potential damage to electrical systems.
Key Features of Miniature Circuit Breakers for Safety
Miniature circuit breakers (MCBs) play a vital role in electrical safety, providing reliable protection against overloads and short circuits. When selecting an MCB, key features such as current rating, breaking capacity, and tripping characteristics are essential for ensuring both safety and efficiency in electrical systems. The current rating indicates the maximum load an MCB can handle, which is crucial for preventing overheating and potential fires. Similarly, the breaking capacity defines the maximum fault current the MCB can interrupt safely without causing damage to the circuit or the device itself.
Another important aspect to consider is the tripping characteristics of MCBs, which can vary based on the speed at which they react to electrical faults. MCBs are typically categorized as Type B, C, or D, each designed to trip under different conditions of overload. Type B is ideal for residential applications where devices have low inrush currents, while Type C is better suited for commercial environments with inductive loads like motors. Type D, on the other hand, is used in specialized industrial applications due to its ability to handle large inrush currents. Understanding these characteristics is fundamental for selecting the right MCB that not only enhances safety but also ensures optimal performance in various electrical environments.
Types of Miniature Circuit Breakers and Their Applications
Miniature circuit breakers (MCBs) are essential components in electrical systems, designed to protect circuits from overcurrent and short circuits. The different types of MCBs serve various applications across residential, commercial, and industrial sectors. The most common types include Type B, C, and D breakers, each tailored for specific loads and operational conditions. Type B breakers are typically used in residential applications where the load is mainly resistive, while Type C MCBs are favored in environments with inductive loads like motors and transformers. Type D breakers, on the other hand, are designed for large inductive loads, providing protection against high inrush currents.
According to a report by Grand View Research, the global market for miniature circuit breakers is expected to reach $11.51 billion by 2025, driven by increasing investments in infrastructure and growing awareness of electrical safety. Selecting the appropriate MCB not only enhances safety but also improves efficiency, minimizing downtime and potential equipment damage. It is vital for professionals to understand the operational environment to choose the right type of MCB, ensuring compliance with standards such as IEC 60898.
Tip: Always consider the characteristics of your electrical load when choosing an MCB. Using the correct type can significantly reduce operational risks and increase the longevity of your electrical components.
In addition, when installing MCBs, ensure that they are tested regularly for functionality. Routine checks help identify any wear or malfunction that could compromise safety and efficiency, ultimately supporting the reliability of the electrical system in use.
Top 10 Miniature Circuit Breakers: Efficiency and Safety Analysis
Factors to Consider When Choosing a Miniature Circuit Breaker

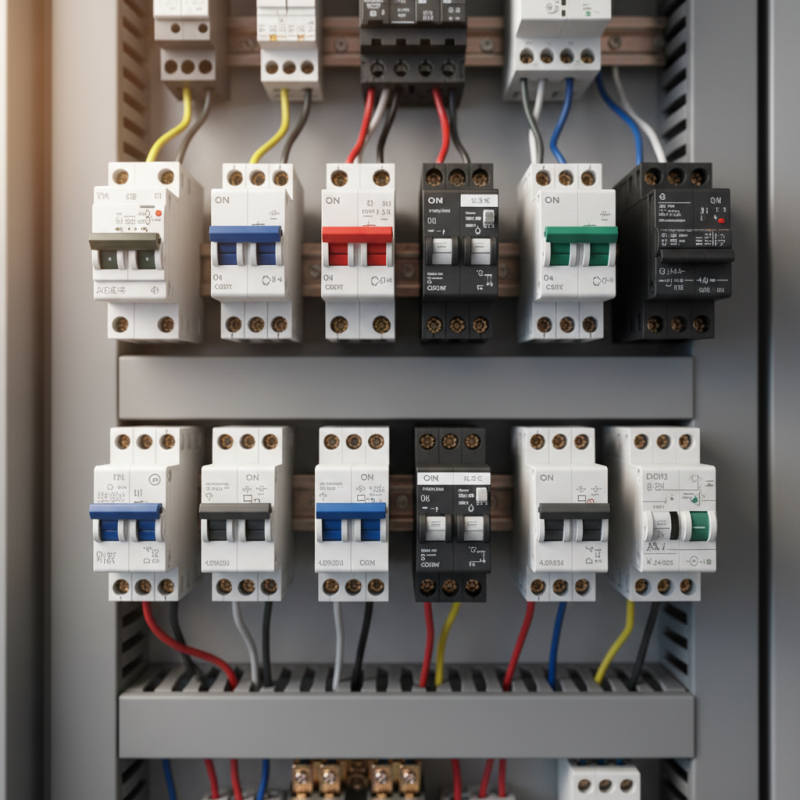

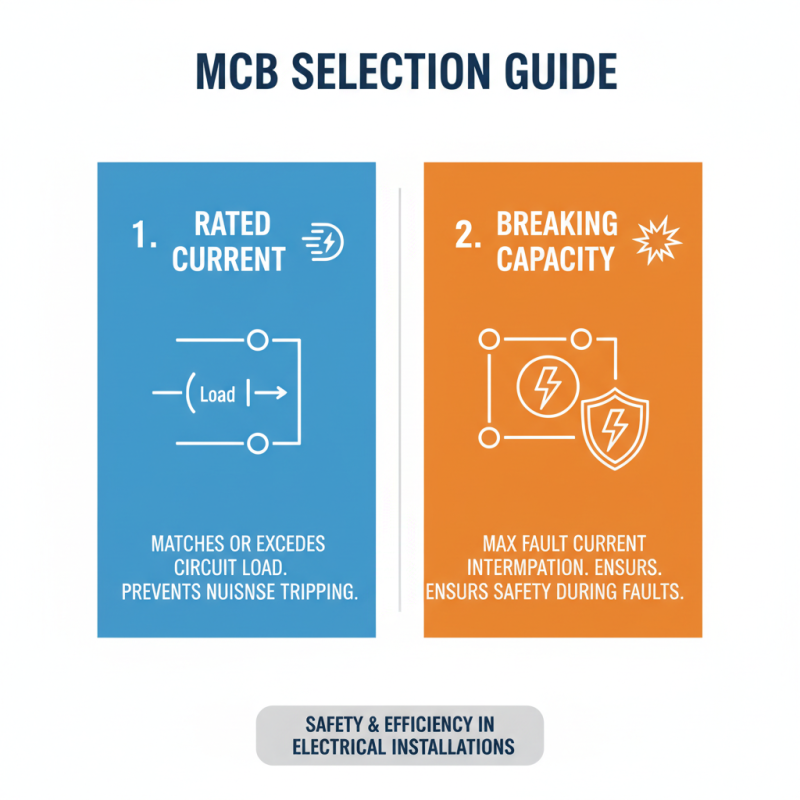

When selecting a miniature circuit breaker (MCB), several factors must be taken into account to ensure safety and efficiency in electrical installations. One of the primary considerations is the MCB's rated current, which should match or exceed the maximum load in the circuit it’s protecting. This helps prevent nuisance tripping while ensuring the device can handle occasional surges. Additionally, the breaking capacity, which indicates the maximum fault current the MCB can interrupt without failing, is crucial. Choosing an MCB with an adequate breaking capacity is essential for maintaining safety during electrical faults.
Another important aspect to consider is the type of MCB, as they are categorized based on their trip characteristics—B, C, and D curves, each suited for specific applications. For example, Type B MCBs are suited for domestic circuits, while Type C is better for commercial or industrial settings where there may be higher inrush currents. Moreover, the installation environment is vital; assess whether the MCB will be exposed to temperature fluctuations, moisture, or dust, as these conditions can affect performance. Properly evaluating these factors will help ensure that the chosen miniature circuit breaker functions efficiently and contributes to overall electrical safety.
Installation Guidelines for Miniature Circuit Breakers
When installing miniature circuit breakers (MCBs), it is essential to follow specific guidelines to ensure safety and efficiency. First, begin by selecting the appropriate MCB rating based on the electrical load of the circuit. This involves calculating the total amperage required and considering the type of load—whether it is resistive, inductive, or a mix. It's important to verify that the MCB's trip curve matches the characteristics of the load to prevent nuisance tripping while offering adequate protection.
Next, proper placement within the distribution board is crucial. Ensure that the breakers are easily accessible for maintenance and that they are organized logically according to the circuits they protect. During installation, adhere to manufacturer instructions regarding terminal tightening and wiring color codes. Use appropriately rated cables, and make sure all connections are secure to minimize the risk of overheating or electrical failure. Adequate labeling of each circuit will also enhance safety and simplify any future troubleshooting or modifications. Lastly, after installation, perform functional tests to confirm that the circuit breakers operate correctly, ensuring both protection and reliability in your electrical system.
Maintenance Tips to Ensure Circuit Breaker Efficiency
Ensuring the efficiency and longevity of miniature circuit breakers (MCBs) requires consistent maintenance and awareness of their operational environment. One fundamental maintenance tip is to conduct regular inspections. Users should routinely check for signs of wear, loose connections, or discoloration on the circuit breakers, as these can indicate overheating or a potential failure.
Additionally, keeping the breaker panel clean and free of dust or debris is essential; accumulated dirt can interfere with airflow and cooling, diminishing the performance of the breakers.
Another critical aspect of maintenance is testing the functionality of the MCBs. This can be accomplished by periodically resetting the breakers and ensuring they trip appropriately during overload conditions. Implementing a schedule for these tests will help verify that the circuit breakers respond correctly to faults, helping to prevent electrical fires or malfunctions.
It’s also advisable to familiarize oneself with the specific ratings and limitations of the MCBs in use, as adhering to these specifications can further enhance safety and efficiency. By staying proactive with maintenance, users can significantly prolong the life and dependability of their miniature circuit breakers.
Common Issues and Troubleshooting for Miniature Circuit Breakers
Miniature Circuit Breakers (MCBs) are crucial components in electrical installations, safeguarding circuits against overloads and short circuits. However, users often encounter several common issues that can compromise their safety and efficiency.
One of the primary problems is nuisance tripping, which can occur due to transient voltage spikes or sensitive appliances. According to a report by the International Electrotechnical Commission (IEC), around 20% of MCB failures can be attributed to incorrect installation or parameter matching, highlighting the importance of comprehensive troubleshooting when such issues arise.
Another common issue to watch for is the deterioration of contacts over time, which can lead to poor performance or complete failure of the MCB. The IEEE Power and Energy Society notes that thermal and mechanical stresses can lead to the degradation of internal components, resulting in increased resistance and, ultimately, a trip failure. Regular testing and maintenance of MCBs can mitigate these risks, ensuring that they function as intended. Users should be aware of the operational environment and ensure that MCBs are kept clean and free of dust, as contaminants can also lead to premature wear and fault conditions.
FAQS
: Miniature circuit breakers provide overcurrent protection to circuits, ensuring safety by disconnecting the circuit in the event of an overload or short circuit, thereby preventing damage to appliances and reducing fire hazards.
Selecting the appropriate MCB involves determining the electrical load of the circuit, calculating the total amperage required, and matching the MCB's trip curve (Type B, C, or D) to the characteristics of the load to prevent nuisance tripping while offering adequate protection.
MCBs are rated by their current-carrying capacity, typically ranging from 0.5A to 125A.
Important installation guidelines include selecting the right MCB rating, ensuring proper placement within the distribution board, adhering to manufacturer instructions for wiring, using appropriately rated cables, labeling circuits clearly, and performing functional tests after installation.
Regular inspections should be conducted to check for signs of wear, loose connections, or any discoloration, along with periodic functionality tests to ensure they trip appropriately under overload conditions.
Look for signs of wear, loose connections, or discoloration, and ensure that the breaker panel is clean and free of dust or debris. If problems persist, consider consulting a professional to assess the situation.
Yes, accumulated dirt can interfere with airflow and cooling, potentially diminishing the performance of the circuit breakers.
Proper labeling enhances safety, simplifies future troubleshooting or modifications, and ensures easy identification of which circuits each breaker protects.
By periodically resetting the breakers and confirming they trip correctly during overload conditions, users can ensure that circuit breakers react appropriately to faults, thus reducing the risk of electrical fires or malfunctions.
Conclusion
Miniature Circuit Breakers (MCBs) are essential safety devices used in electrical installations to prevent overload and short circuit conditions. Understanding their key features is crucial for ensuring safety and efficiency in various applications. MCBs come in different types, each tailored for specific uses, and selecting the right one involves considering factors such as current rating, trip characteristics, and the environment in which it will be installed.
Proper installation and regular maintenance of Miniature Circuit Breakers are equally important to ensure their optimal performance. Users should adhere to installation guidelines to avoid common issues, and those who experience problems must be familiar with troubleshooting techniques to address them promptly. By understanding MCBs and following best practices, users can effectively enhance safety and reliability in their electrical systems.
