Choosing the Right MCB Rating: Essential Guide for Safety
MCB means miniature circuit breaker, which plays an important role in the prevention of short circuits and overload in electrical systems. In this article, we will discuss MCB rating and its features, such as types of circuit breakers and certain factors one should keep in mind before selecting different MCB ratings.
What is MCB Rating?
The MCB rating indicates this particular MCB’s capacity to carry current, measured in amperes (A). This means that the MCB will break the circuit once the current passing through it exceeds its maximum capacity.
Spotlight on Our MCB Products

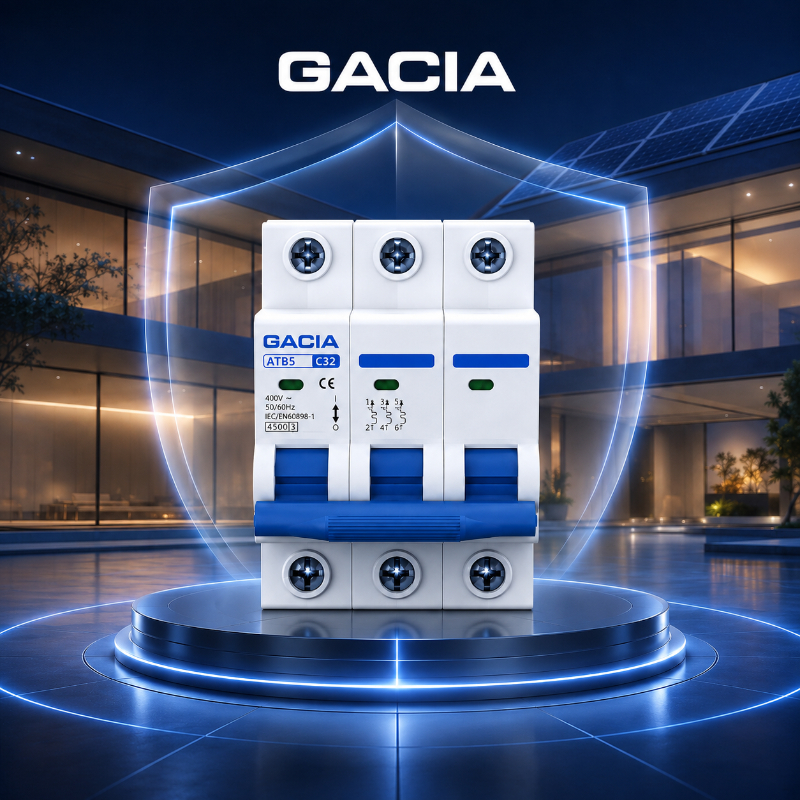

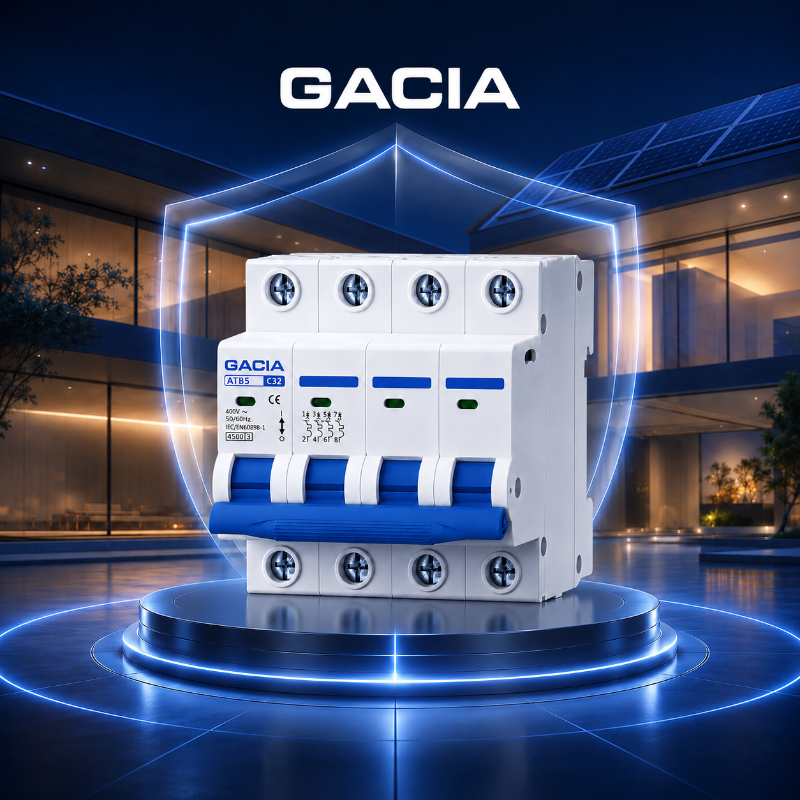

Our company manufactures a wide array of MCBs, and among them are ATB5 and ATB6 models, which exemplify our commitment to quality and efficiency. The ATB5 MCB is popular due to its remarkable rated breaking capacity of 4.5KA, making it cheaper than its counterparts. The ATB5 MCB uses cutting-edge technology, and it is manufactured under fully automated conditions according to the latest technological advancements in the smart factory industry, thus ensuring a constant quality of the products being manufactured along with maximum productivity.
Our top product, ATB6 MCB, promises a breaking capacity of 6 kA while still maintaining very good prices. Its advanced design ensures its functionality in the automated production process in our smart factory. It allows achieving great quality, effectiveness, and minimal delivery time.
GACIA MCB is important in RF distribution, being the first stage of security by switching off the circuit in the case of an overload or a short circuit in the network. The plug and working principles also ensure the normal functioning of the device, as it was created for the safety of both people and equipment.
Types of MCB Ratings
MCB classification is done on their tripping characteristics, which depend on the period in which the MCB opens in different overload conditions. The following are the standard classifications:
B-type MCBs: Made particularly for devices that require the least power to begin their operations, like lights or ordinary plug-in electric sockets used at home.
C-type MCBs: These gadgets can cope with medium inrush currents, thus allowing to utilize them additionally for various gadgets, from heating appliances to electric motors.
D-type MCBs: They have been deliberately constructed for operation under conditions of high starting currents in circuits such as motors and transformers. The equipment ensures MCB protection from the high current loads.
Selective MCBs may work in more advanced systems with different MCBs linked to each other, and only the bad section of the circuit gets switched off while others keep working.
Key Considerations for Selecting MCB Ratings
Several factors should influence your choice of MCB rating:
1. Load Calculation: In the process of choosing an MCB, it is important to make an accurate calculation of the total load of the circuit. You need to know what load you expect from the connected devices in order to select the right rating.
2. Circuit Type: The kind of circuit you are operating, either household, commercial, or industrial, will establish your need for A, B, or D type miniature circuit breakers. It is necessary to take the regular load characteristics and intended uses into account.
3. Inrush Currents: There is a chance that high inrush current consumer devices may need to use MCB types C or D to avoid tripping unnecessarily. Check the equipment specifications to determine if inrush current capability is included.
4. Safety Standards: It is important to ensure that the chosen miniature circuit breakers follow the national electrical codes for their effectiveness and security.
How to Choose MCB Rating – A Practical Guide
Selecting the correct MCB rating involves several steps:
Conduct a detailed evaluation of the design process of the circuit and also the total basic specifications of the electrical devices, including the protection of all equipment connected to the circuit, and calculate the total value with respect to the voltage connected to the circuit.
Think about the electrical system. Is this a settlement, or are there any machines around? Identify the specific difficulties associated with inrush currents and what kinds of protection must be provided.
Select an MCB that has a rating higher than the calculated load with a certain margin to ensure safety against transient surges; a tolerance of 20% is acceptable.
Lastly, consult local regulations and standards to ensure compliance before finalizing your choice.
FAQs
What is the recommended MCB rating for home circuits?
Generally speaking, the preferred choice for domestic circuits is a B-type Miniature Circuit Breaker, which is rated somewhere between 6A and 32A.
Can I use a higher MCB rating than needed?
When an MCB is used with a current rating that is too high, it may end up not tripping during overloads, causing catastrophic events such as fires.
How often should MCBs be tested?
The miniature circuit breaker is to be checked at least once a year to ensure that it is functional. It is recommended to have an electrician conduct the inspection.
Conclusion
Choosing an appropriate MCB rating is crucial, as this contributes to the safe and effective functioning of electrical systems. Some of the aspects are load capacity, type of circuit, and safety rules. If you are not confident in any of these criteria, it is advisable to seek help from a qualified electrician, who knows all the requirements.
