In electrical safety, reliable circuit protection is essential for reducing the risks associated with electrical faults. An RCBO (Residual Current Circuit Breaker with Overcurrent Protection) combines residual current protection and overcurrent protection in a single compact device. This article explains how RCBOs work, their main benefits, and why they are widely used in residential, commercial, and industrial electrical installations.

What Is an RCBO?

An RCBO breaker combines residual current protection with overcurrent protection in a single device. It can protect against residual current, overload, and short-circuit conditions, helping improve the safety and reliability of electrical circuits.

Unlike an MCB, which primarily provides overload and short-circuit protection, an RCBO also provides residual current protection. Compared with an RCCB, an RCBO integrates overcurrent protection into the same device.

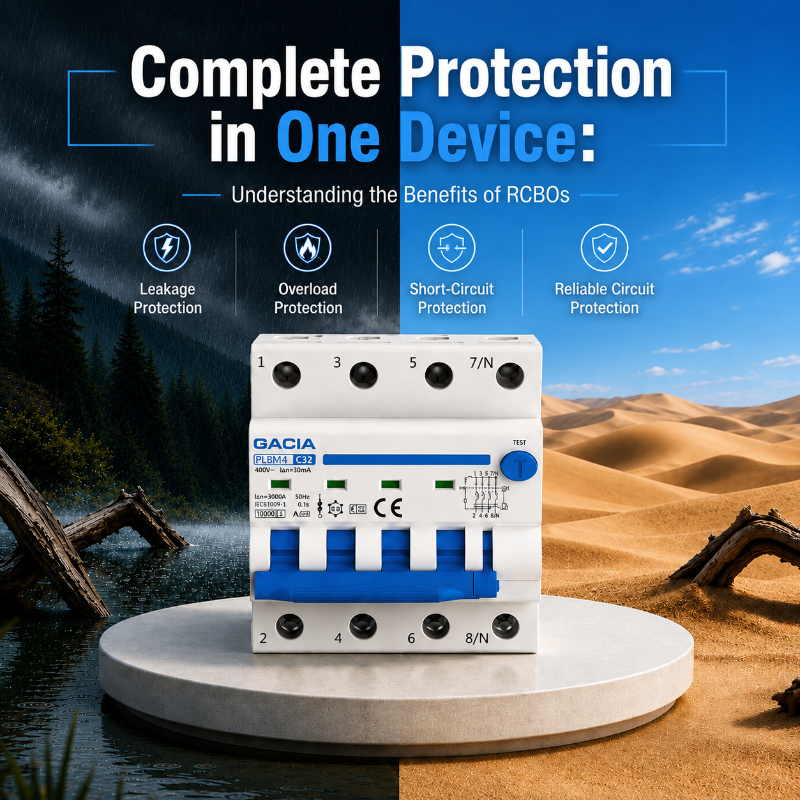

GACIA PL8M2 and PL8M4 RCBOs are designed to provide combined residual current, thermal overload, and magnetic short-circuit protection. The products undergo quality control and performance testing before delivery to help ensure reliable operation under specified operating conditions.

The Benefits of an RCBO

RCBOs offer several practical advantages for modern electrical installations.

1. Comprehensive Circuit Protection

An RCBO combines residual current and overcurrent protection in one device. When a residual current, overload, or short circuit is detected within the specified operating conditions, the device can disconnect the circuit to help reduce electrical hazards.

Residual current protection can also help reduce the risk of electric shock caused by leakage currents.

2. Space-Efficient Design

Because an RCBO integrates multiple protection functions into a single device, it can help reduce the space required inside a distribution board.

This compact design is particularly useful in residential and commercial applications where electrical panel space may be limited.

3. Convenient Installation and Maintenance

By combining residual current and overcurrent protection, an RCBO can reduce the number of separate protection devices required for an individual circuit.

This integrated design can simplify circuit configuration and make installation and maintenance more convenient.

How Does an RCBO Protect an Electrical Circuit?

An RCBO continuously monitors the electrical current in a protected circuit.

When the device detects a difference between the current flowing through the live and neutral conductors that exceeds its specified residual operating current, it can disconnect the circuit to help reduce the risk associated with earth leakage and electric shock.

An RCBO also provides overcurrent protection. When the current exceeds the specified operating level because of an overload or short circuit, the corresponding protection mechanism operates to disconnect the circuit.

By combining these functions, an RCBO provides multiple layers of protection for electrical circuits.

RCBO vs. RCCB: What Is the Difference?

Both RCBOs and RCCBs provide residual current protection, but their functions are different.

An RCCB primarily provides residual current protection and generally requires a separate overcurrent protection device, such as an MCB.

An RCBO, on the other hand, combines residual current protection with overcurrent protection in one device.

Therefore, the choice between an RCBO and an RCCB depends on the electrical system design, installation requirements, available space, and

applicable local regulations.

How to Choose the Right RCBO

When selecting an RCBO, several factors should be considered.

1. Rated Current

RCBOs are available with different rated currents, such as 6A, 10A, 16A, 20A, 25A, 32A, and 63A, depending on the product series.

The appropriate rated current should be selected according to the circuit load, conductor capacity, installation method, and applicable electrical requirements.

2. Residual Operating Current

The residual operating current, expressed in mA, determines the level of residual current at which the RCBO is designed to operate.

For example, 30 mA RCBOs are commonly used for additional protection against electric shock in many applications, subject to local electrical regulations and installation requirements.

3. Number of Poles

The number of poles is another important consideration when selecting an RCBO. Depending on the electrical system and product design, different configurations such as 1P+N, 2P, 3P+N, and 4P may be available.

4. Rated Breaking Capacity

The rated breaking capacity indicates the maximum short-circuit current that the RCBO can safely interrupt under specified test conditions.

The appropriate breaking capacity should be selected according to the prospective short-circuit current of the installation.

GACIA RCBO Solutions

GACIA offers different RCBO solutions for residential, commercial, and industrial electrical applications.

The PL8M2/PL8M4 series combines residual current protection with thermal overload and magnetic short-circuit protection, providing multiple protection functions in a compact device.

The PL8HE series provides residual current and overcurrent protection and is available in different ratings and configurations for various electrical applications.

The selection of a suitable GACIA RCBO should be based on factors such as rated current, residual operating current, number of poles, breaking capacity, installation requirements, and applicable standards.

Applications of RCBOs

RCBOs are widely used in different types of electrical installations, including:

Residential Applications

RCBOs can be used to protect individual circuits for lighting, sockets, appliances, and other household electrical loads.

Commercial Buildings

In commercial buildings, RCBOs can be used for lighting circuits, socket outlets, equipment, and other electrical loads that require individual circuit protection.

Industrial Applications

RCBOs can be used to provide protection for individual circuits supplying machinery, equipment, lighting, and other electrical loads, depending on the requirements of the installation.

Conclusion

An RCBO combines residual current protection and overcurrent protection in a single compact device, helping improve circuit safety while reducing the space required for protection devices.

When choosing an RCBO, it is important to consider factors such as rated current, residual operating current, number of poles, breaking capacity, installation conditions, and local electrical requirements.

GACIA's PL8M2/PL8M4 and PL8HE series provide different RCBO solutions designed for a range of residential, commercial, and industrial applications.
