Distribution Box: Types, Components and Options for Electric Power Distribution

Knowing how an electric distribution box works (also known as a distribution board) is of critical importance when ensuring both safety and proper functionality of all electric systems in homes and businesses. The electric distribution box is one important part of a fully functional electric distribution system; it's responsible for delivering electrical power throughout the structure and protecting circuits against damage from malfunctioning electric equipment.

Types of Electric Distribution Boxes

Electric distribution boxes can typically be grouped into one of three types based on their intended use.

Indoor Electric Distribution Boxes

Indoor electric distribution boxes are located within the physical confines of a structure, typically in a room where electric equipment, feeds from the utility provider and/or other electric devices are located, and serve as a central location to house, mount, and connect all of these devices. Indoor electric distribution boxes are typically made from galvanized steel or aluminum.

Outdoor Electric Distribution Boxes

An outdoor electric distribution box is usually found outside the physical enclosure of a structure, and generally houses, mounts, and connects electric equipment requiring weather-resistance, per the Nationwide Electric Code standards. Outdoor electric distribution boxes may also be crafted from galvanized steel or aluminum.

Mobile Electric Distribution Boxes

Mobile electric distribution boxes are portable units that provide electrical feeds to multiple devices across varied locations and heights, provided they adhere to the National Electrical Code. These boxes may use a combination of indoor and outdoor characteristics and sometimes come equipped with wheels.

Types of Power Distribution Boxes

The distribution box selection process should include consideration of the number of phases in each type of power distribution box. Distribution boxes are sorted into three major categories:

Single-Phase Distribution Boxes

These distribution boxes are used to distribute low voltage (less than 240 volts) at residential buildings using conventional wiring methods.

Three-Phase Distribution Boxes

Distribution boxes of this type are used primarily in commercial and industrial facilities, as they are capable of handling higher loads and providing consistent power for machinery and equipment.

Metal Enclosed Distribution Boxes

These boxes offer increased durability and better withstand environmental factors compared to other types, making them suitable for use outside buildings.

Plastic Distribution Boxes

Lightweight and versatile, plastic distribution boxes are popular due to their easy installation and cost-effectiveness, particularly in residential settings.

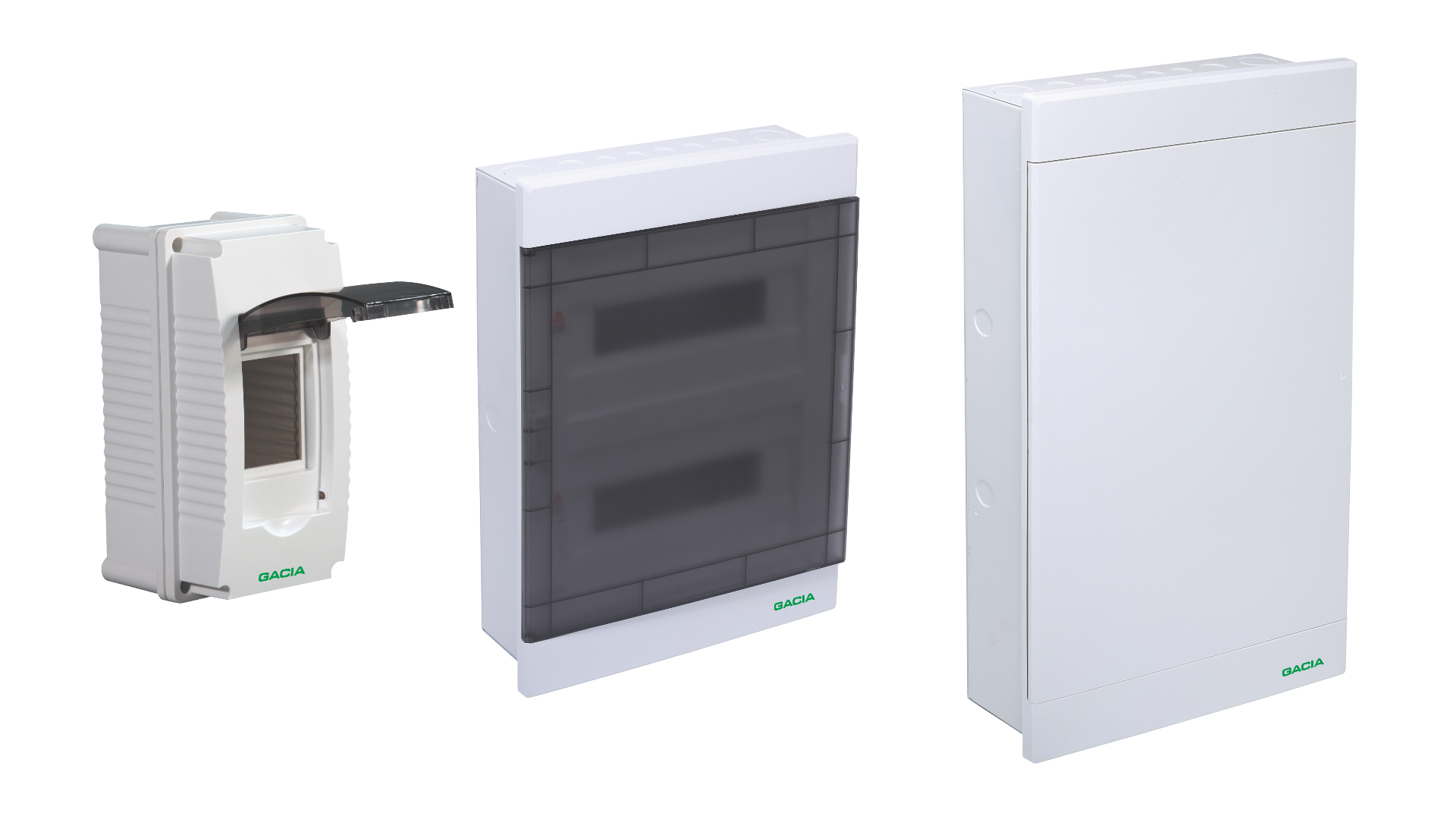

Quality Power Distribution Boxes Manufactured by GACIA: A Great Choice

If you are looking for an excellent and dependable power distribution box, you should consider the GACIA Distribution Box.

BE Series Power Distribution Box

This series includes surface mount and flush mount configurations, allowing flexibility for nearly all application needs.

DS Series Power Distribution Box

Not only durable but also providing enhanced safety, this series meets the IP65 waterproof standard. It is ideal for industrial power distribution and outdoor applications.

M5 Series Dark-Mounted Distribution Box

This innovative space-efficient series features a modern design, making it suitable for residential or commercial installations, prioritizing both performance and aesthetics. GACIA distribution boxes offer advanced benefits, including modular design, high-grade insulation, compliance with international safety codes, and heightened performance for reliable electrical systems.

How to Select the Most Appropriate Distribution Box for Your Home

Selecting a distribution box for your home involves consideration of many factors to ensure a safe and effective installation. Some tips include: - Evaluate Your Power Requirements: Knowing your residential load and its consumption will help determine the required size of your distribution box. - Caution on Safety Features: Select a box that provides fuse slots or circuit breakers that meet or exceed safety standards to protect against electrical fire hazards. - Future-Ready: If you plan to expand your electrical system, choose a box with additional circuit build-out capacity for future use.

Distribution Box Maintenance Techniques

Regular clearances and maintenance of your distribution box can assist in maintaining safety and reliability over time. Here are some tips: - Routine Inspections: Regular inspections can detect potential risks like bad wires, burnt wires, or other electrical malfunctions. - Keep Free from Dust: Clean the area around the distribution box to avoid dust and debris hindering its functionality. - Use Experienced Services: Consult a professional electrician to conduct thorough inspections and necessary repairs when technical issues arise. Understanding distribution box component features and functionality is essential for managing electrical systems effectively—whether in homes or businesses. Following this guide and selecting advanced premium options like the GACIA Distribution Box Series, you can ensure your electrical system is secure, dependable, and built for the future.
