How to Choose the Right MCCB: Essential Selection Guide

Getting the proper protection device is essential to ensuring that your systems operate safely and efficiently. A molded case circuit breaker (MCCB) is one of the more dependable solutions. It can be quite confusing when selecting the best MCCB for your purpose because of the various types and ratings available. This article will help you understand.

What is an MCCB?

A molded case circuit breaker is an electromechanical device used to protect electrical circuits against overloads and short circuits. The operation of an MCCB is based on the interruption of electricity in order to avoid any kind of damage to electrical components and to reduce the risk of potential fires. The application of MCCB in commercial and industrial domains is truly vast.

How Does an MCCB Work?

An MCCB operates based on the principles of either thermal magnetic or electronic technology. A thermal magnetic MCCB depends on the bimetallic strip that bends at a temperature resulting from excess current flow. Electronic MCCBs, on the other hand, utilize microprocessors to monitor the electrical current running through them and to trip the circuit at specific parameters.

Main Features of MCCBs

MCCBs offer a wide range of features that make them ideal for several applications. The main features of MCCBs are:

• Overcurrent Protection: Interrupts the current during overload or short circuit conditions.
• Adjustable Trip Settings: Allows users to set different trip levels based on system requirements.
• Breaking Capacity: The maximum current an MCCB can interrupt without being damaged.

MCCB Types and Ratings

Choosing an MCCB option requires some knowledge of the types available as well as the ratings of the options. MCCB options come in a range of configurations, in particular:

• Thermal Magnetic MCCB: Known for their reliability and simplicity, suitable for most applications.
• Electronic MCCB: Offers advanced functionalities, ideal for settings requiring precise control.

When choosing a Motor Circuit Close Breaker (MCCB), its rating should match the electrical requirements of the application. The electrical requirements are typically specified in terms of amperes. The selection of an MCCB should take into consideration the type of load and the maximum current values.

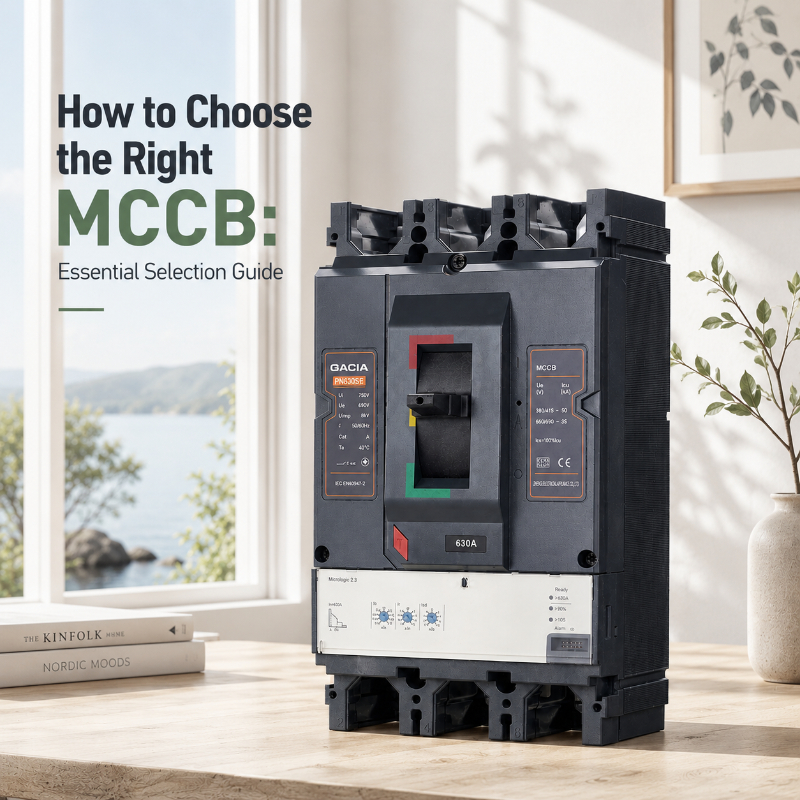

GACIA's PN Series MCCB

For AC systems operating at frequencies of 50Hz and 60 Hz, the GACIA PN Series Moulded Case Breaker has a specified working voltage of up to 690V. Supporting current levels ranging from 12.5A to 1600A, this series is implemented in electrical distribution systems for effective transmission of electric energy as well as providing circuit and power equipment protection in the face of any overloading or short circuits. The PN Series MCCB can be utilized for switching operations of electrical circuits under standard operating conditions and during motor starting applications on rare occasions. Complying with the strict IEC60947-2 standard as well as having CE and KEMA Certifications, the PN Series is known for its reliability and high quality.

MCCB Breaking Capacity

The breaking capacity is defined as the maximum fault current that can be efficiently interrupted by the breaker. This is a very important characteristic as it guarantees that the device is able to deal with unpredictable surges. The choice of an MCCB with sufficient breaking capacity eliminates the chances of any system failure and reduces the risk of problems occurring during an electrical fault.

Applications of MCCBs

MCCBs are used across various sectors, including:

• Manufacturing and Industrial Facilities
• Commercial Buildings
• Data Centers
• Residential Power Distribution

Thanks to their flexibility, they can be used for various purposes such as motor protection and power distribution hubs.

Frequently Asked Questions

What is the difference between thermal-magnetic and electronic MCCB?

MCCBs that use thermal-magnetic technology trip with simple mechanical mechanisms, while electronic MCCBs feature advanced sensors and algorithms that enable precision protection and monitoring capabilities.

Where are MCCBs commonly used?

Motor Circuit Controllers are useful in industrial and business sectors where large power consumption requires solid protection from faults.

What MCCB rating do I need?

The required rating of the MCCB depends on the normal operating load of your process. It is essential to pick a rating that is not too far removed from your highest expected load.

In conclusion, the choice of suitable molded case circuit breakers requires knowledge of the needs in regard to electricity as well as an understanding of some factors, such as types of MCCB, their ratings and breaking capacities, as well as applications. Using quality products like GACIA PN Series improves both safety and efficiency of electrical systems.
