MCB Endurance and Service Life: What Determines Circuit Breaker Reliability?

The MCB (miniature circuit breaker) guards against overloads and short circuits in electrical circuits. Even though it is often thought of as a "set and forget" component, the reliability of this device depends on its operating frequency, fault exposure history, temperature, installation quality, and product design.

The fatigue life and useful life of MCBs assist contractors, equipment suppliers, facility managers, and purchasers in choosing appropriate devices and assessing when replacement is needed.

What Is MCB Endurance?

MCB durability refers to the ability of a circuit breaker to function throughout the specified number of operating cycles.

It is generally divided into two types:

Mechanical endurance: The term describes the capacity of the mechanism to perform switch operations, thus showing how strong the parts of the switch – such as the handle, springs, latch, and moving contacts – are.

Electrical endurance: It refers to procedures undertaken while conveying or interrupting electrical power. As electrical switching produces heat, arcing, and contact deterioration, it is usually harder than mechanical operation.

The endurance ratings of any product differ as per its design, rated voltage, pole arrangement, functioning characteristic, and standards followed in a particular industry.

How Long Does an MCB Last?

The life span of an MCB is not fixed. A properly chosen and installed circuit breaker can be operational for 10 to 20 years.

Nonetheless, the service life of electrical devices doesn’t just depend on age. The effects of repetitive utilization, excessive load, short circuits, elevated temperatures, lack of proper connections, wetness, and pollution can also contribute to the speed of deterioration.

There is also a difference between rated endurance and actual service life. Endurance is a measure under defined testing conditions, whereas service life reflects the real conditions of operation.

Key Factors That Affect MCB Service Life

1. Switching Frequency

The occurrence of mechanical wear is associated with the switching movement. One-off operations have little effect on the wear, whilst frequent switching can result in increased wear of the operating components.

For regular control, MCBs should not be the correct solution. A more suitable option for frequent operation is to make use of a relay, a contactor, or a dedicated switching device.

2. Overloads and Short Circuits

MCBs are used to cut the overloads as well as the short circuits, but they create physical stress.

Serious short circuits or multiple tripping occurrences can result in the failure of the contacts and the arc suppression material, even if the circuit breaker can still be reset. Hence, frequent tripping should be investigated, rather than simply resetting the equipment.

3. Load and Temperature

The presence of high currents over extended periods of time causes a thermal effect in the breakers. Keeping the breaker near its rated current for a long period enhances the aging process of the insulating materials and contacts.

Selection of the rated current always needs to be done based on the size of conductor, installation conditions, expected load, and manufacturer recommendations.

4. Environmental Conditions

Insulation and internal metal parts can be damaged due to high humidity conditions, dust, water vapor, chemical fumes, and corrosion.

For severe conditions, appropriate enclosures and protection from the environment need to be utilized so that the distribution system stays clean, dry, and well-ventilated.

5. Installation Quality

Loose terminals increase the electrical resistance, causing excessive heat that may discolor the terminal, causing nuisance tripping, melting, or damage to the terminal.

Installers need to comply with the manufacturer's specifications in terms of conductor size, length of stripping, arrangement of terminals, and torque tightening.

6. Breaking Capacity

The rated short-circuit breaking capacity of an MCB has to be more than the potential fault current present at the point of installation.

An MCB that has low breaking capacity may not be able to safely interrupt a serious fault. The following parameters must be taken into account when choosing an MCB: rated current, voltage, number of poles, the tripping curve, the breaking capacity, and its coordination with other protective devices.

7. Product and Manufacturing Quality

The dependability of an MCB is influenced by the efficiency of its contact system, arc chamber, trip function, terminals, insulation types, and production.

Price should not be the sole factor that buyers should take into account in case of large projects. Buyers should consider product certification, test documents, traceability, consistency of batch, warranty, along with the capabilities of the supplier's manufacturing.

Standards and MCB Endurance

For household and similar uses, MCBs are frequently manufactured to conform to standards including IEC 60898-1, while some industrial MCBs may meet the requirements of IEC 60947-2 and related standards.

The standards set out requirements for performance in tripping action, rise in temperature, testing of short-circuits, insulation, safety, and reliability.

Nevertheless, adherence to any standard does not imply a uniform lifespan for every MCB. Correct choice of the product, installation, and working conditions is still crucial.

When Should an MCB Be Replaced?

An MCB should be inspected when there are signs such as:

• Discoloration or melted plastic

• Excessive terminal temperature

• Burning smells or unusual noise

• Corrosion or visible damage

• A loose or damaged operating handle

• Repeated nuisance tripping

• Failure to reset or remain in position

The breaker must also undergo a professional evaluation before it is placed back into operation after experiencing a significant short circuit.

How to Improve MCB Reliability

Longer service life begins with correct selection and installation.

Select the appropriate current rating, breaking capacity, tripping characteristic, pole configuration, and voltage rating of the circuit. Maintain the distribution boards in clean, dry, and well-ventilated condition; in addition, check the tightness of all terminals and clamps.

Instead of merely exchanging the MCB with one having a higher rating if it keeps tripping, identify the electrical issue at hand.

Conducting routine check-ups as well as documenting faults, changes, and unusual situations can support detecting potential issues before these problems become serious ones.

MCB Selection Checklist for Buyers

Before purchasing an MCB, check:

• Rated current and voltage

• Breaking capacity

• Tripping curve

• Number of poles

• Applicable standards

• Operating temperature range

• Terminal compatibility

• Mechanical and electrical endurance

• Distribution board compatibility

In case of big projects, aspects such as manufacturing consistency, traceability, testing abilities, lead times, warranties and provision of technical assistance must also be taken into account.

GACIA MCB Solutions

ATB6 6kA MCB – Automated Manufacturing Circuit Breaker

GACIA created the ATB6, an economical miniature circuit breaker rated at 6kA, with its expertise in manufacturing for residential and light commercial applications. The design of the ATB6 is based on GACIA's craftsmanship and ensures consistent quality and efficiency in its production in GACIA's smart factories.

In addition to that, the ATB6 provides essential overload and short-circuit protection by forcibly disconnecting the circuit in the event of a fault. With its compact design and reliable trip performance, the ATB6 is a suitable solution for electrical distribution systems, with a 6 kA breaking capacity which corresponds to the prospective fault-current level.

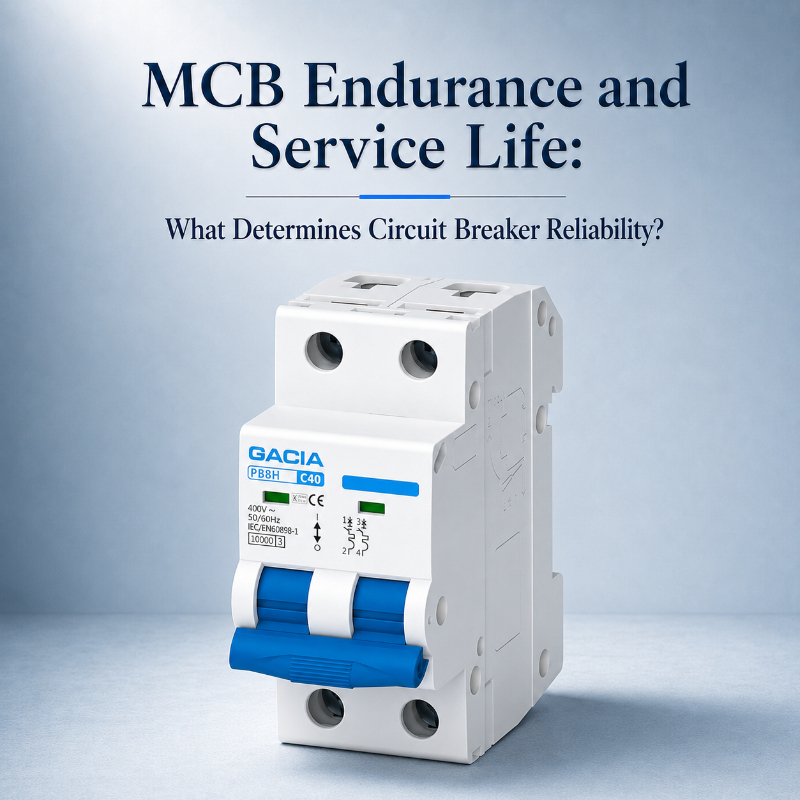

PB8H 10kA Professional P Series MCB

The PB8H, which is a part of GACIA’s professional P Series, is a miniature circuit breaker rated at 10kA and designed particularly for applications requiring a higher breaking capacity of the circuit. It offers efficient protection against overload and short circuit, being suitable for different electric distribution systems of residential, commercial, and industrial nature.

The PB8H benefits from a combination of GACIA’s expertise in circuit protection and a high-breaking capacity, which allows the PB8H to be installed in applications where higher fault currents can occur. Furthermore, it can be applied in cases of occasional switching under normal operating conditions.

Frequently Asked Questions

How long does an MCB last?

A well-chosen and properly installed MCB may be effective for a decade or two in operation, although such factors as load, switching frequency, fault history, environmental conditions, and installation matter significantly when it comes to real service life.

Does an MCB need to be replaced after every trip?

No, a standard overload trip does not necessitate automatic replacement, but the reason for the trip should be determined, particularly after multiple trips or serious short-circuiting.

Can an MCB be used as an ON/OFF switch?

LonMild circuit breakers are able to serve the purpose of switching or isolating at times. However, they are not recommended for use due to frequent operation needs.

What is the difference between MCB lifespan and endurance?

MCB endurance involves an evaluation of the number of operating cycles suffered. In contrast, the concept of MCB lifespan refers to the period it can be safely operational in the actual conditions of operation.

Conclusion

The performance of an MCB cannot be determined just by its age or rated current. It is important to analyze breaking capacity, operating conditions, installation, manufacturer quality, and fault history to understand the reliability of the circuit breaker.

Selection of a suitable miniature circuit breaker (MCB) and abiding by the manufacturer’s instructions, plus checking installation under abnormal conditions, can improve the reliability of circuit protection and help to prolong its operational life.
