Miniature Circuit Breaker: Working and Application

A miniature circuit breaker, or MCB, is a compact protective device used to safeguard electrical circuits from overloads and short circuits. Its job is simple but critical: when current rises beyond a safe level, the breaker disconnects the circuit before heat builds up enough to damage wiring or connected equipment. In typical operation, MCBs are used to protect cables and to provide automatic disconnection under fault conditions, which makes them a core part of low-voltage electrical safety.

The working principle of an MCB is built around two protection mechanisms. One responds to overload conditions, and the other reacts to short circuits. The overload function depends on both current and time, so a sustained excess current will eventually trip the breaker. The short-circuit function acts much faster and is triggered by a sudden, very high fault current. Together, these two responses create the time-current behavior that defines how an MCB protects a circuit. That is why the breaker can tolerate normal inrush for a short moment, yet still open quickly when a real fault occurs.

This is also where trip curves become important. Type B MCB trip at about 3 to 5 times rated current and are commonly used for residential loads with low surge current. Type C devices trip at about 5 to 10 times rated current and suit commercial or industrial circuits with more inductive loads. Type D breakers trip at about 10 to 14 times rated current and are intended for applications with very high inrush current, such as motors and similar demanding equipment. Choosing the right curve helps reduce nuisance tripping while keeping protection effective.

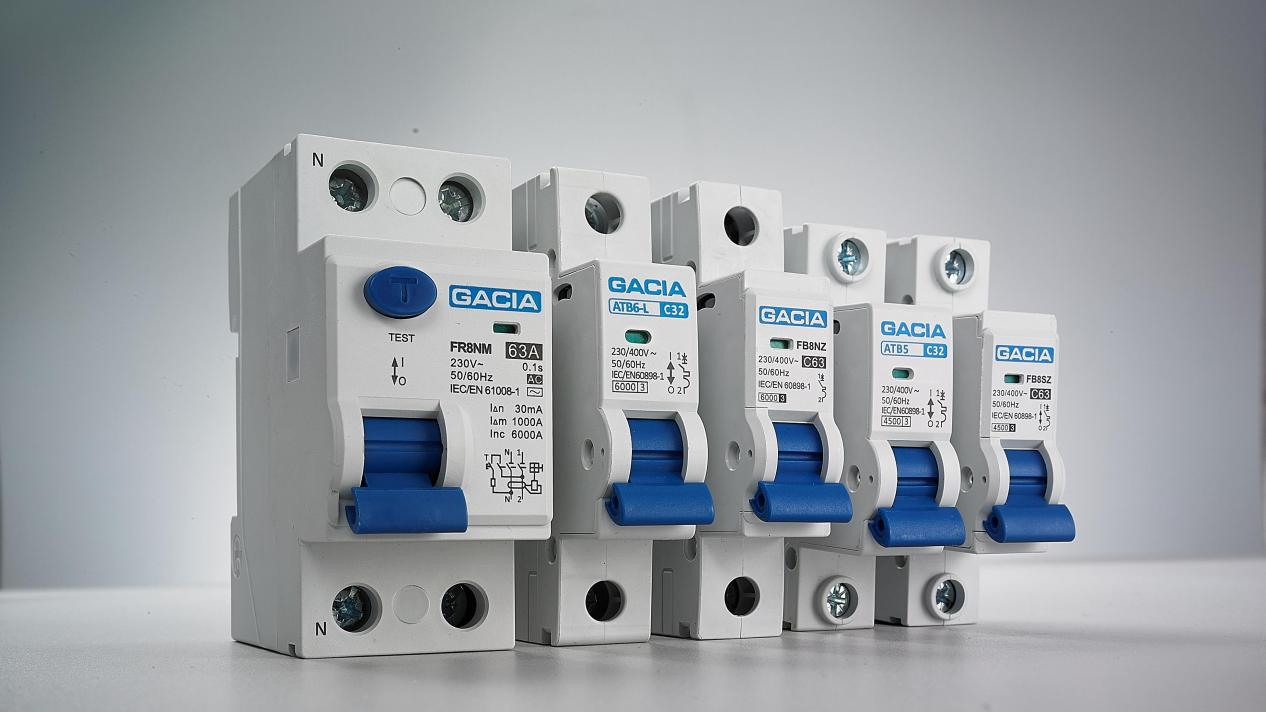

At GACIA, we build our MCB range around these real-world needs. Our products cover rated currents from 1 A to 63 A, support B, C, and D tripping curves, and offer breaking capacity up to 10 kA. We also design our MCBs with a compact modular structure for DIN-rail installation, making them practical for space-conscious panels. In our F Series, we use standardized components and automated manufacturing in our smart factory to improve consistency, reduce defect rates, support traceability, and enable rapid delivery. For us, reliable protection is not only about performance on paper, but also about stable quality in every batch and dependable output for different markets.

In application terms, MCBs are used wherever low-voltage circuits need dependable protection and clear fault isolation. Residential lighting, socket circuits, commercial distribution boards, industrial control panels, and motor-related loads all rely on the right breaker specification to stay safe and stable. The best selection is always the one that matches the load behavior, the expected fault level, and the installation environment. When those three factors are aligned, the MCB becomes a quiet but essential part of a safer electrical system.
