The Essential Components of a Distribution Box Explained

A distribution box, commonly known as a breaker box or panel board, is an important piece of equipment in electrical applications. It acts as a primary control and distribution point for electric power to various devices in a building. The distribution box will allow for safe and reliable use of electrical power by distributing electrical energy throughout different areas of the building, whether they are residential, commercial, or industrial. By becoming familiar with the principal components of the distribution box, one gains an understanding of the distribution box's function as well as how it can be used when installing, maintaining, or expanding electrical systems.

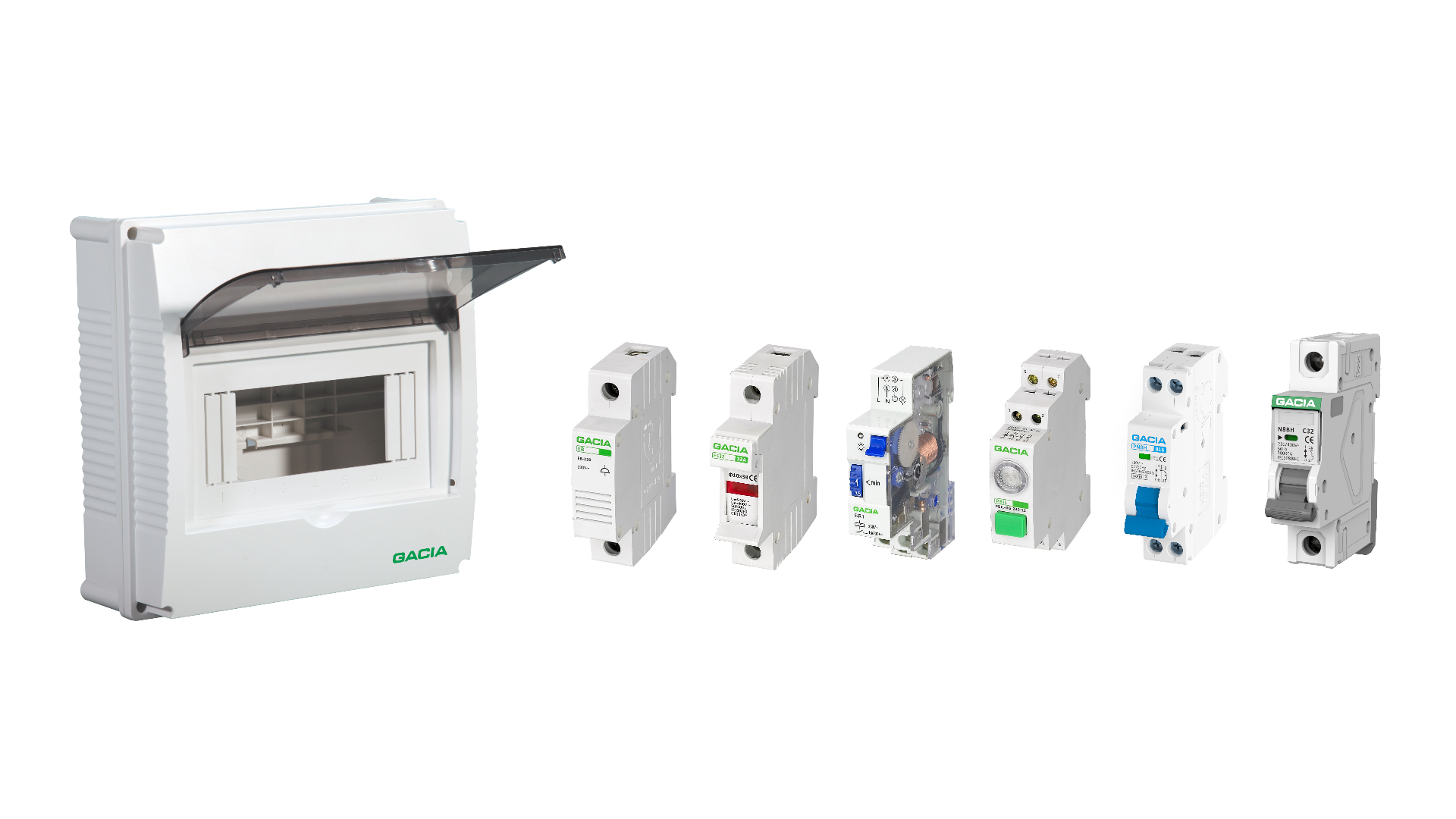

Main Components of a Distribution Box

Every component of a distribution box has been designed with safety, functionality and convenience in mind. Let's explore the principal components of a distribution box, including their purpose within an electrical system and how they work together.

1. Circuit Breakers

The purpose of circuit breakers is to protect an electrical circuit. They stop the flow of electricity whenever there is an overload or short circuit, providing safety. A circuit breaker is an essential element in preventing potentially dangerous situations, like fires starting from an electrical source.

2. Fuses

As with circuit breakers fuses will provide an additional layer of protection for circuits from excessive loads . Each fuse has an element which will melt under conditions of excessive current, thus opening the circuit. Circuit breakers have nearly completely replaced fuses in most new installations, but older installations and some specialty applications still utilize fuses for protection against excessive loads on their electrical circuits.

3. Timers

The use of timers in a distribution box allows for the management of the operation of electrical equipment by controlling the timing of when the devices come on and off, making it more energy efficient and user-friendly for the system.

4. Contactors

Large electrical loads may be controlled by contractors acting as electronic switches. With contractors you can safely switch high power devices on or off. A distribution box with a contractor will also allow for wiring changes and optimization of power usage.

5. Meters

Electric meters track electricity consumption for all electric devices that are connected. The data from electric meters is critical in regard to monitoring energy consumption, therefore allowing energy managers to implement measures for efficient use and reduction in cost.

6. Indicators

Indicator lights allow users to see the electrical system's current condition. These colored light signals indicate whether the power is turned on or if there is a malfunction in that circuit, allowing for rapid determination of the problem.

7. Electric Bells

Electric bells may be mounted within certain distribution box types to provide a means of notifying whenever there is a change between multiple locations or as a way of indicating other events related to the operation of the electric circuit.

How GACIA Components Enhance Your System

If you're planning to upgrade or expand your electrical system, it may seem like an overwhelming project. However, upgrading or enhancing your electrical system is significantly easier with the high-quality products that we manufacture.  GACIA System Expansions products provide you with dependable, long-lasting solutions for multiple applications. For example, the FS Series Circuit Fuses prevent loads from exceeding current limits; the HC Series AC Modular Contactors manage loads of high voltage effectively; and the SR Series Programmable Weekly Timer Switches provide time-sensitive automation of electrical systems. Additionally, the EB Series Electric Bells and IL Series Indicator Lights will provide you with clear audible and visual cues about whether or not your system is operating correctly, enabling you to troubleshoot electrical problems better. All of these customer-friendly, state-of-the-art products will ensure that your electrical system runs efficiently while allowing for future expansions.

Conclusion

An electrical distribution box is one of the key parts of a structure’s electrical system. It includes many essential electrical equipment, such as receptacles, breakers, fuses, switches, and much more. Familiarizing yourself with all of these parts will aid both homeowners/DIY’ers and contractors in ensuring that their electrical installations operate safely and efficiently. By utilizing GACIA products, you can further increase the reliability of your electrical systems, prepare them for expansion, and prepare for future modifications. Whether you are upgrading from an older system or designing a new one, using the proper components will enable you to manage your electricity in a safe and efficient manner.
