Understanding Circuit Breaker Rated vs. Operating Current

The electrical industry uses various terms and specifications that can be tough to comprehend, even for experienced practitioners. One of the common sources of confusion is the difference between a circuit breaker rated current and a circuit breaker operating current. This article will explain both concepts, briefly highlight the difference between them, and lend you a helping hand in your choice. At the same time, we will introduce GACIA’s unique circuit breakers such as PL8HT 6kA Professional P Series RCBO and PL8M1N RCBO.

What is the Rated Current of a Circuit Breaker?

The maximum permissible amount of current that a circuit breaker can continue carrying under certain conditions without excessive tripping is called the rated current of a circuit breaker. For instance, the rated current of a circuit breaker that can handle 20 amperes of load is said to be 20 amperes. When assessing circuit breakers, it's paramount to consider the rated current of the circuit breaker as it determines factors like type, thermal and magnetic properties of the circuit breaker, and ambient temperature of the circuit breaker.

What is the Operating Current of a Circuit Breaker?

Unlike starting current, operating current is the actual amount of current passing through the circuit at any given time. The operating current varies depending on the devices or loads connected to the circuit. If you have appliances that take up a load of 15 amps, then the operating current for you would be 15 amps as well. Operating current should be well understood to ensure you do not exceed the rated current limit since going higher can result in tripping the circuit breaker or even damaging the electrical system.

What is the Difference Between Rated Current and Operating Current?

One needs to be aware of the distinction between rated current and operating current if he/she has anything to do with electrical systems. The major difference is that while the rated current is a constant feature which is set by the maker, the operating current is a variable one which changes depending on the load in the circuit.

Rated Current: This is the maximum amount of current that an electrical device manufacturer indicates as a safe amount, and not likely to cause tripping of the device.

- Current in Use: This changes according to how much is being utilized and indicates how much current is flowing at a specific point in time.

Is Rated Current the Same as Operating Current?

To respond to the question in a straightforward manner, we should start by noting that the operating current and rated current are NOT the same! In certain cases, they may coincide, but keep in mind that rated current is an upper limit that is defined for safe operation, whereas the operating current is subject to variations during the operation of the circuit breaker.

Integrated Protection Features of GACIA Circuit Breakers

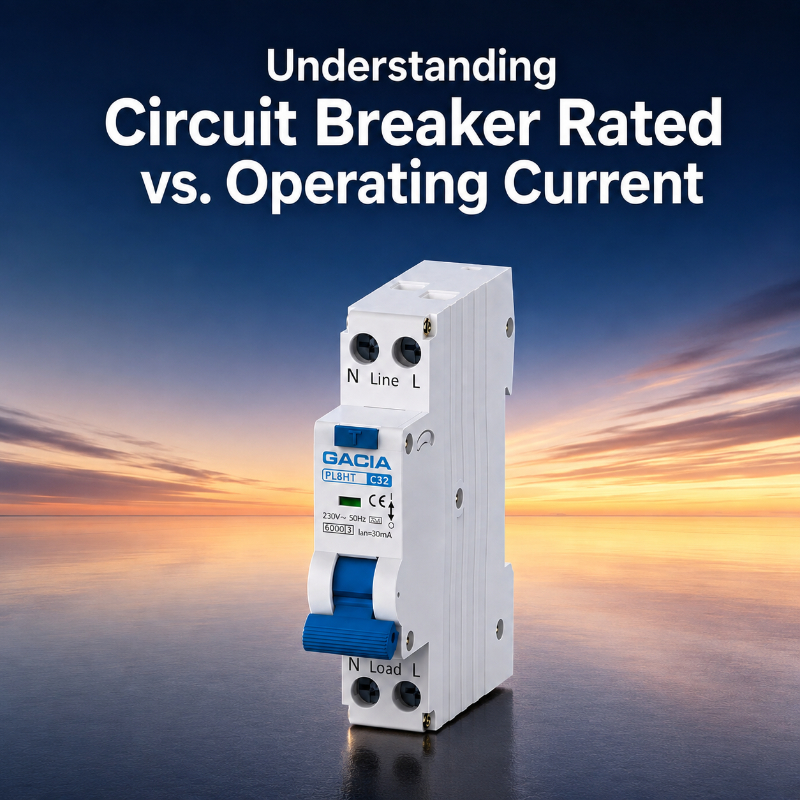

The example of integrated protection can be seen in the design of GACIA’s PL8HT 6kA Professional P Series RCBO because it connects residual current detection with thermal and magnetic short circuit protection, thus providing double protection for electric circuits and guaranteeing protection against various types of electrical dangers. At the same time, PL8M1N is also an excellent example of efficient operation.

Versatile Application of GACIA Circuit Breakers

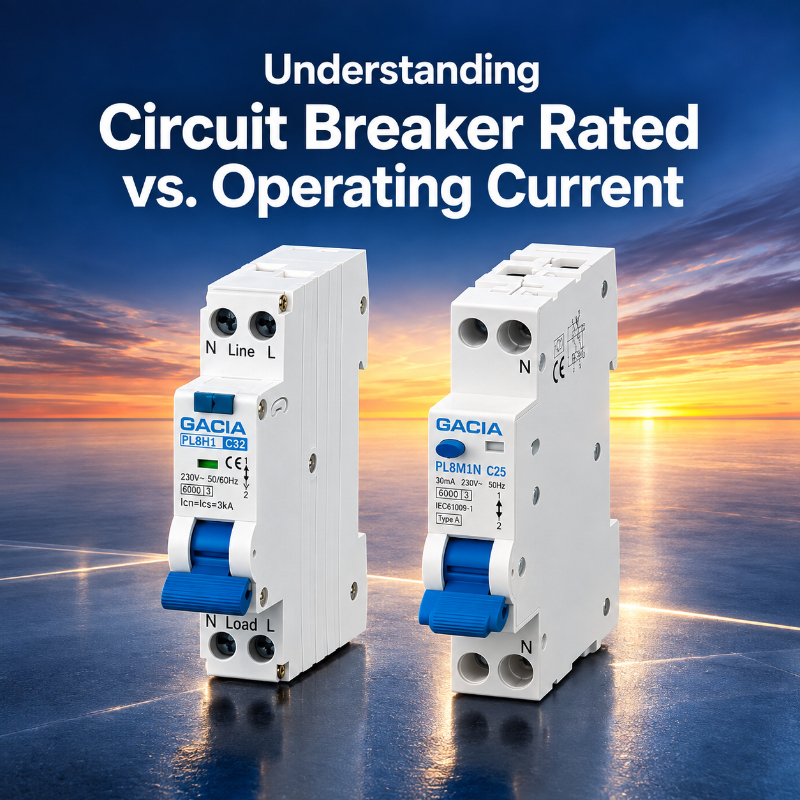

GACIA’s circuit breakers feature high versatility, hence allowing their usage in all kinds of environments like residential, commercial, and industrial. They are able to meet various working conditions and work with different electrical system configurations. The PL8M1N RCBO is also efficient and compact, as it offers a 1P+N design with current values ranging from 6 to 25 A and 6kA breaking power. Thus, it has several benefits compared to traditional units. At the same time, it supports B and C curves and complies with IEC/EN 61009-1 standards.

FAQ

What is the rated current of a circuit breaker? Rated current refers to the maximum amount of electrical current which circuit breaker can safely conduct during normal operating conditions.

What is the operating current of a circuit breaker? The operating current is the actual current flowing through the circuit during normal functioning.

What is the difference between rated current and operating current? Rated current is a fixed maximum, while operating current is variable depending on the load.

Is rated current the same as operating current? No, they are different; rated current is the maximum capacity, while operating current refers to actual usage.

To sum up, it is very important to be aware of the differences between the rated and operating currents of a circuit breaker if you want to make sure that your electrical systems operate safely and correctly. By taking into account accurate values of the rated and operating current of a certain circuit breaker while making a choice on the specific circuit breaker option, such as GACIA PL8HT RCBO or PL8M1N RCBOs, you will be able to protect your electronics and ensure the normal operation of your electrical supply system.
