GACIA EDC200
GACIA EDC Series High Voltage DC Contactor
High Voltage DC Contactor
200A High Voltage DC Contactor

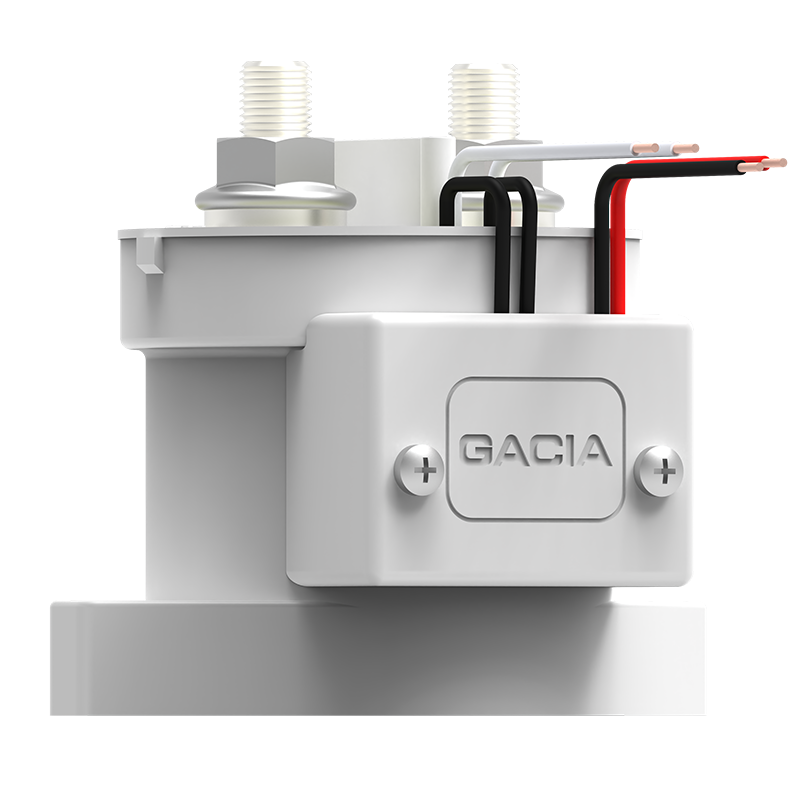

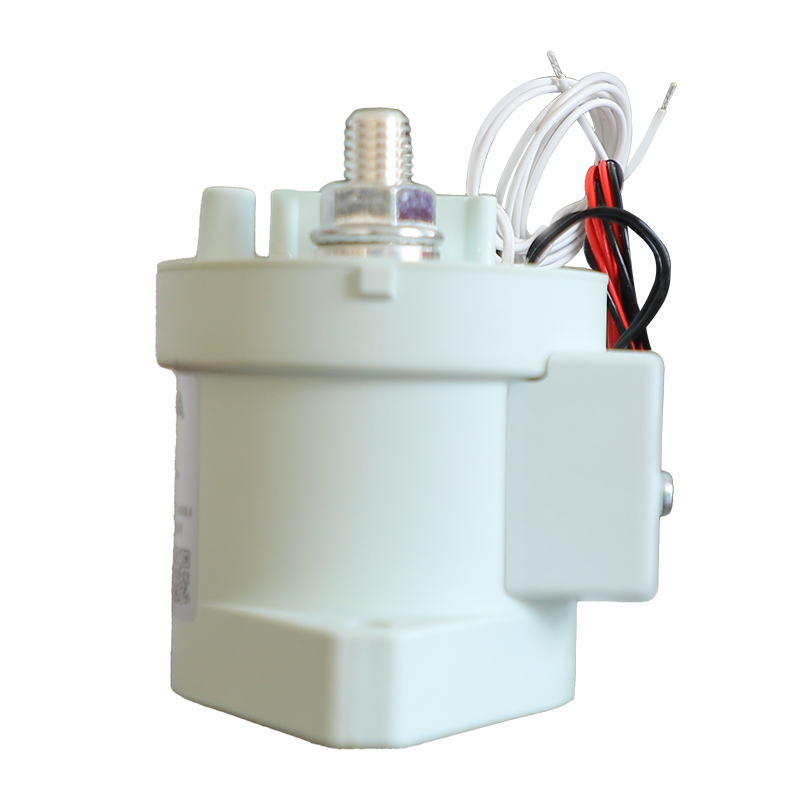

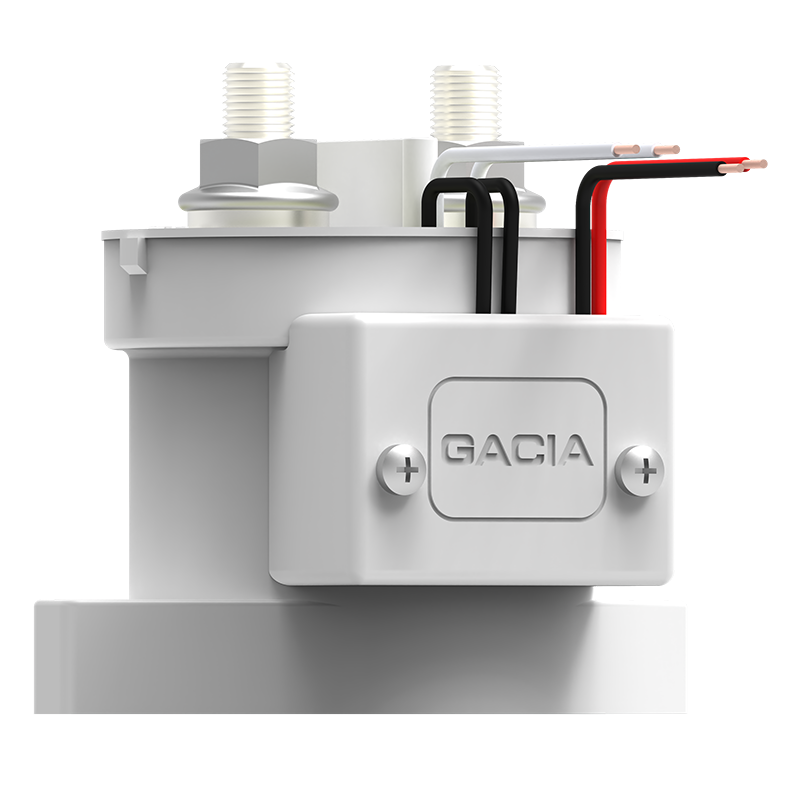

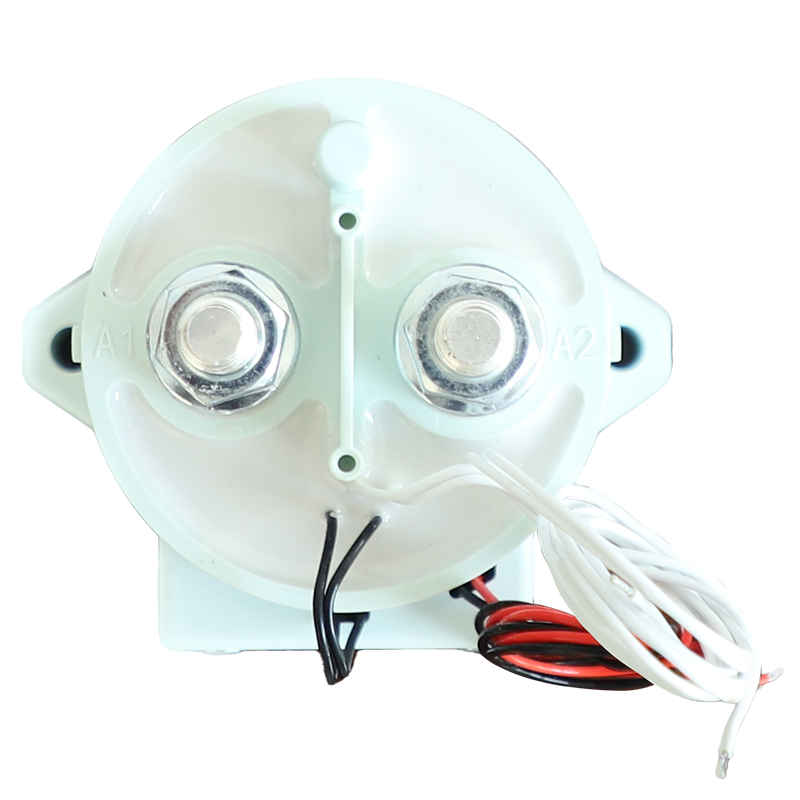

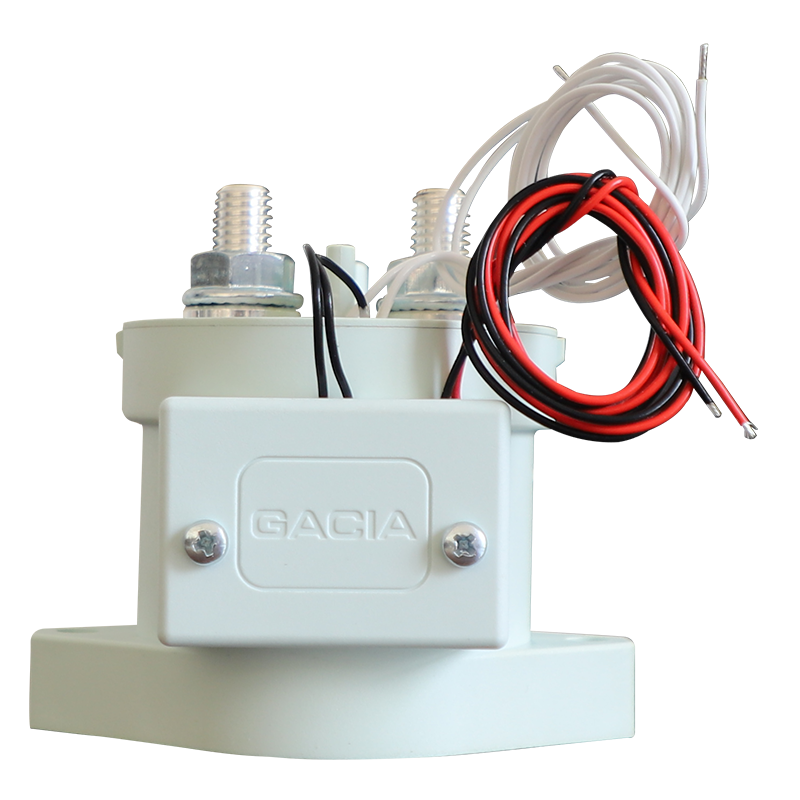

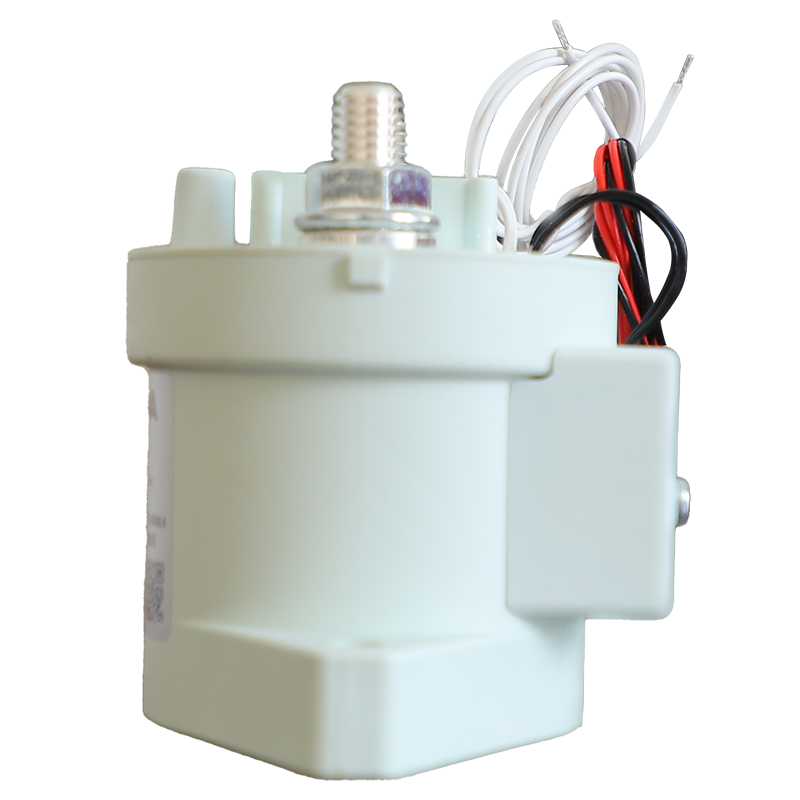

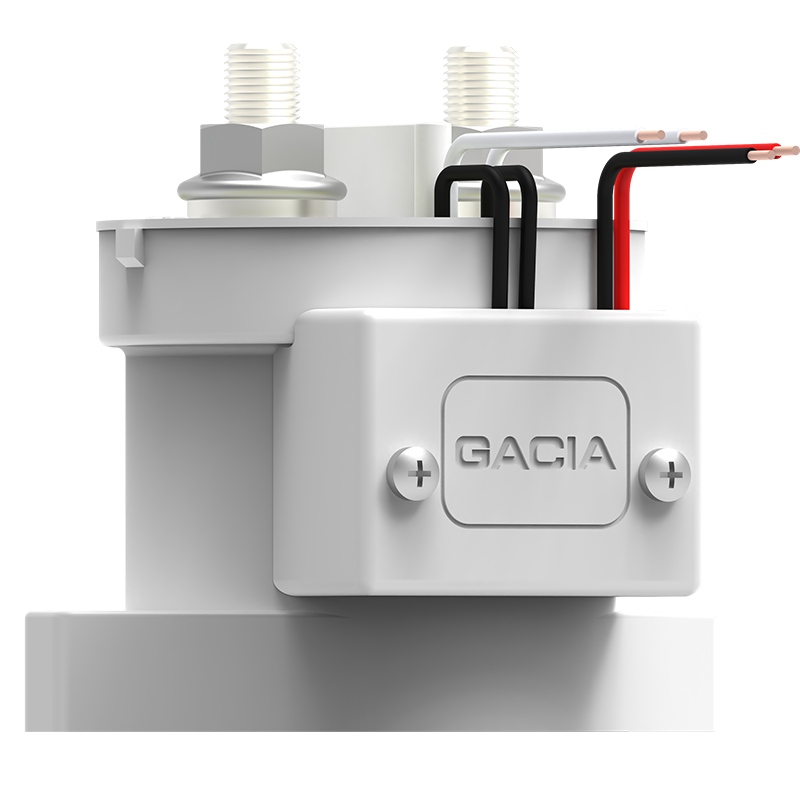

EDC200 EDC Series High Voltage DC Contactor

The GACIA EDC Series High Voltage DC Contactor is a flexible solution widely used in applications like charging stations, new energy vehicles, photovoltaic energy storage, communication systems, construction machinery, and uninterrupted power supplies. It is designed to handle a rated current between 150A and 300A and a rated switching voltage of 1000VDC, ensuring reliable and efficient performance in demanding conditions. Featuring energy-saving capabilities, a load polarity-free main contact, and robust protection with epoxy resin and nitrogen, this contactor is perfect for high voltage DC applications while ensuring durability and top-notch performance.

    Contact us

    Key Features

    • Energy-Efficient

      - Designed to reduce energy consumption

      - Optimizes system performance while saving power

      - Guarantees efficiency in challenging environments

    • Polarity-Free Main Contact

      - Allows flexible installation without polarity restrictions

      - Compatible with various systems and configurations

      - Simplifies integration in diverse settings

    • Epoxy Resin and Nitrogen Protection

      - Ensures durability and long-lasting protection

      - Provides reliable operation in harsh conditions

      - Offers resistance to moisture, corrosion, and other external factors

    Tech Specs

    Main Contact Polarity Non-polarized Rated Coil Voltage 12VDC/24VDC
    Main Contact One set of normally open, bridge-type double breakpoints Coil Operating Range 9~36VDC
    Model Auxiliary Contact Model One set of normally open, single pole single throw Maximum Start-up Current 3.8A(0.1s)
    Main Contact Rated Voltage 12~1000VDC Keeping Current 0.18A/12V
    0.09A/24V
    Main Contact Rated Current 150A Mechanical Life 300000 times
    Maximum Interrupting Current 1500A×320VDC 1times Electrical Life 6000 times(150A×750VDC)
    1000 times(150A×1000VDC)
    High Voltage Testing Disconnect Between Contacts: 3000Vrms,1000Vrms(Between auxiliary contact), Electricity leakage current ＜1mA
    Between Contact and Coil: 3000Vrms, Electricity leakage current ＜ 1mA    		 Temperature Range -40℃~+85℃
    Insulation Electrical Resistence Disconnect Between Contacts: ≥100MΩ@1000VDC
    Between Contact and Coil: ≥100MΩ@1000VDC    		 Humidity Range 5%~95% RH
