GACIA EDC250
GACIA EDC Series High Voltage DC Contactor
High Voltage DC Contactor
250A High Voltage DC Contactor

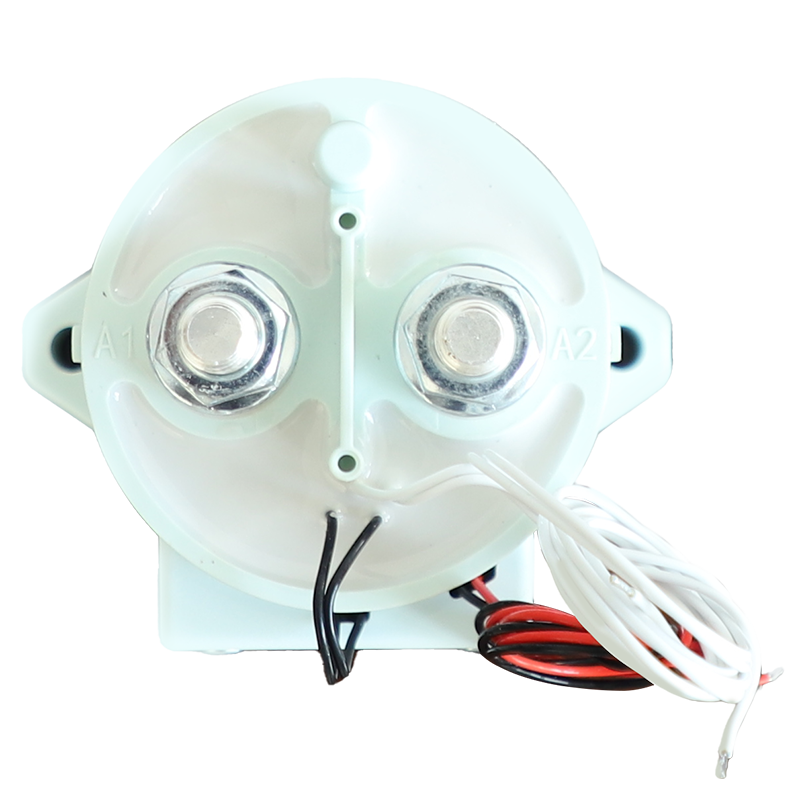

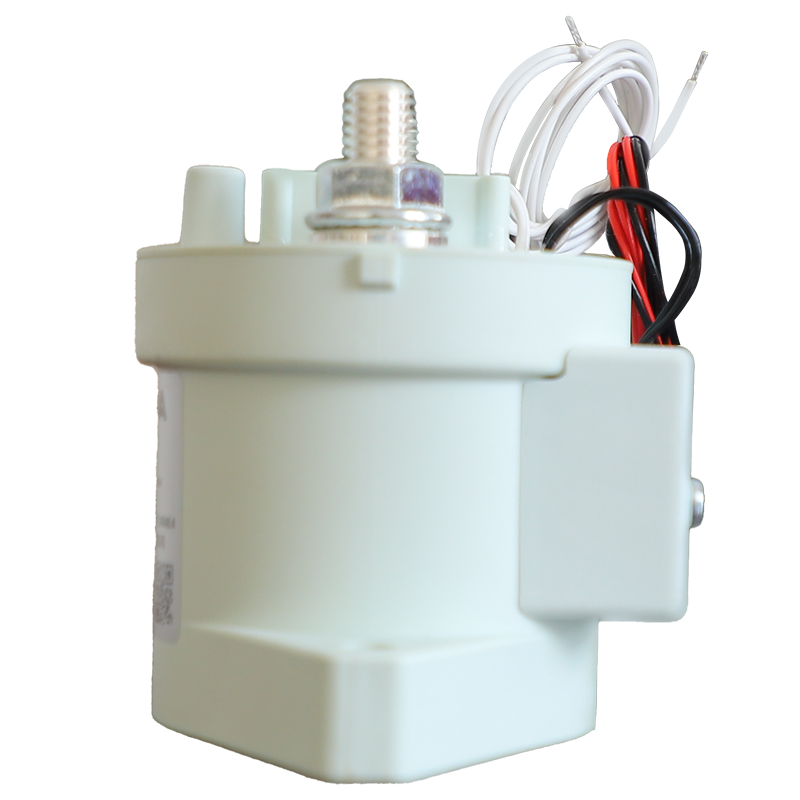

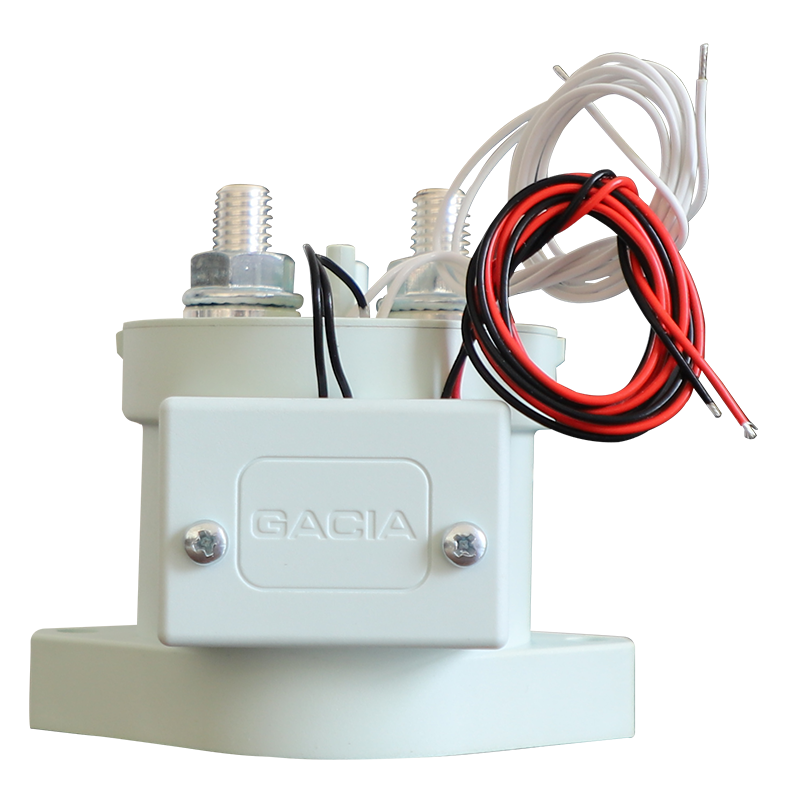

EDC250 EDC Series High Voltage DC Contactor

The GACIA EDC Series High Voltage DC Contactor is a versatile solution commonly used in applications such as charging stations, new energy vehicles, photovoltaic energy storage, communication equipment, construction machinery, and UPS systems. It supports a rated current range of 150A to 300A and a switching voltage of up to 1000VDC, ensuring stable and efficient operation in demanding environments. With energy-efficient features, a polarity-free main contact, and durable protection provided by epoxy resin and nitrogen, this contactor is an excellent choice for high voltage DC applications, offering long-lasting performance and reliability.

    Contact us

    Key Features

    • Versatile Application

      - Widely used in charging stations, electric vehicles, solar energy storage, communication systems, construction machinery, and UPS.

      - Versatile solution

      - Ideal for high voltage DC applications

    • Reliable & Efficient Performance

      - Supports a rated current range of 150A ~ 300A

      - Switching voltage of up to 1000VDC

      - Ensuring reliable and efficient performance in challenging conditions

    • Durable Protection & Energy Efficiency

      - Energy-efficient features

      - Polarity-free main contact

      - Durable protection provided by epoxy resin and nitrogen

    Tech Specs

    Non-polarized Rated Coil Voltage 12VDC/24VDC
    One set of normally open, bridge-type double breakpoints Coil Operating Range 9~36VDC
    One set of normally open, single pole single throw Maximum Start-up Current 3.8A(0.1s)
    12~1000VDC Keeping Current 0.18A/12V
    0.09A/24V
    250A Mechanical Life 300000 times
    2500A×320VDC 1times Electrical Life 6000 times(250A×750VDC)
    1000 times(250A×1000VDC)
    Disconnect Between Contacts: 3000Vrms,1000Vrms(Between auxiliary contact), Electricity leakage current ＜1mA
    Between Contact and Coil: 3000Vrms, Electricity leakage current ＜ 1mA    		 Temperature Range -40℃~+85℃
    Disconnect Between Contacts: ≥100MΩ@1000VDC
    Between Contact and Coil: ≥100MΩ@1000VDC    		 Humidity Range 5%~95% RH

    Download

    Catalog
    PDFjmg
    High VoltageDC Contactor.pdf
    download_icon

    FAQs

    • Q1：Is the GACIA EDC Series DC Contactor compatible with both standard and custom applications?

    • Q2：Can the GACIA EDC Series DC Contactor be used in both indoor and outdoor installations?
