GACIA 230v indicator light for distribution box

IL Series Indicator Light Device for Electrical System

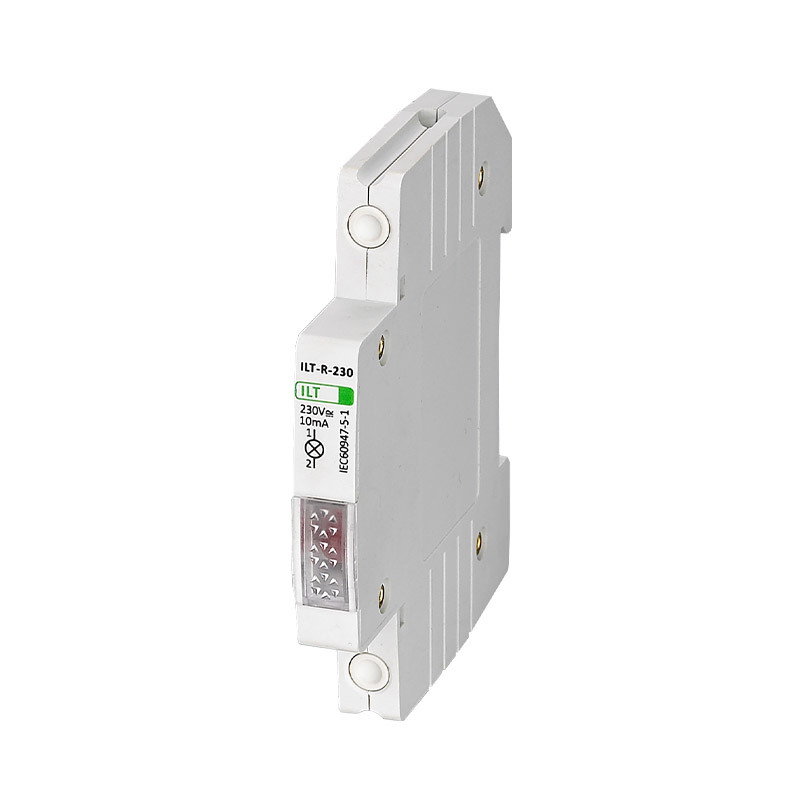

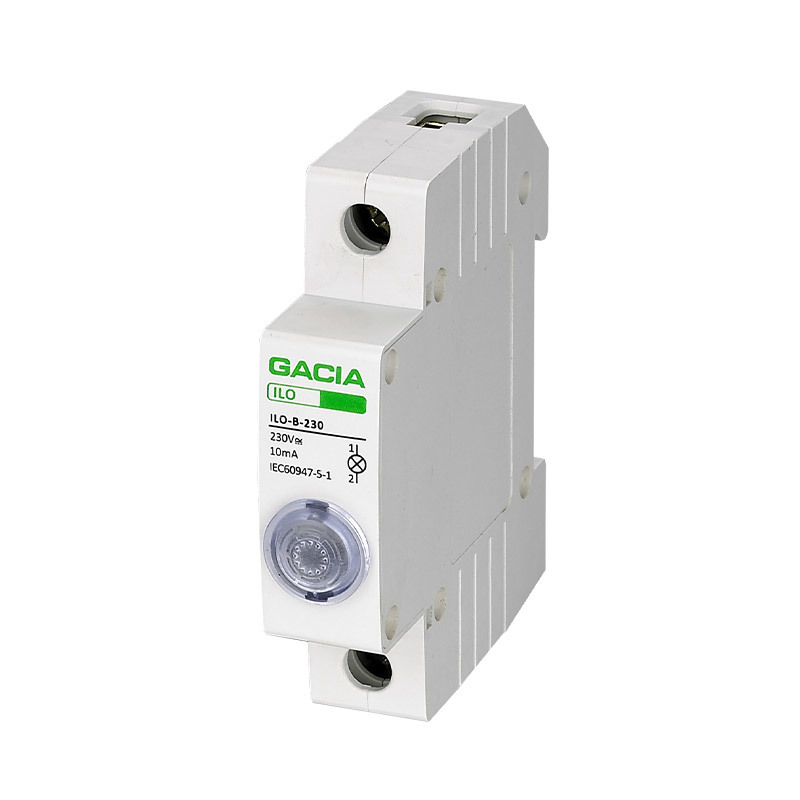

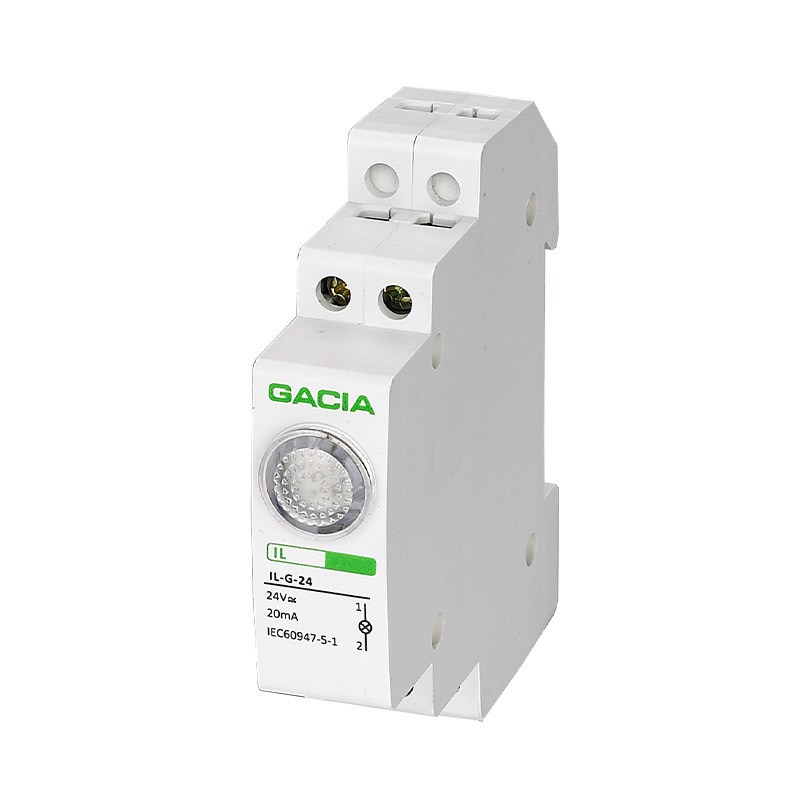

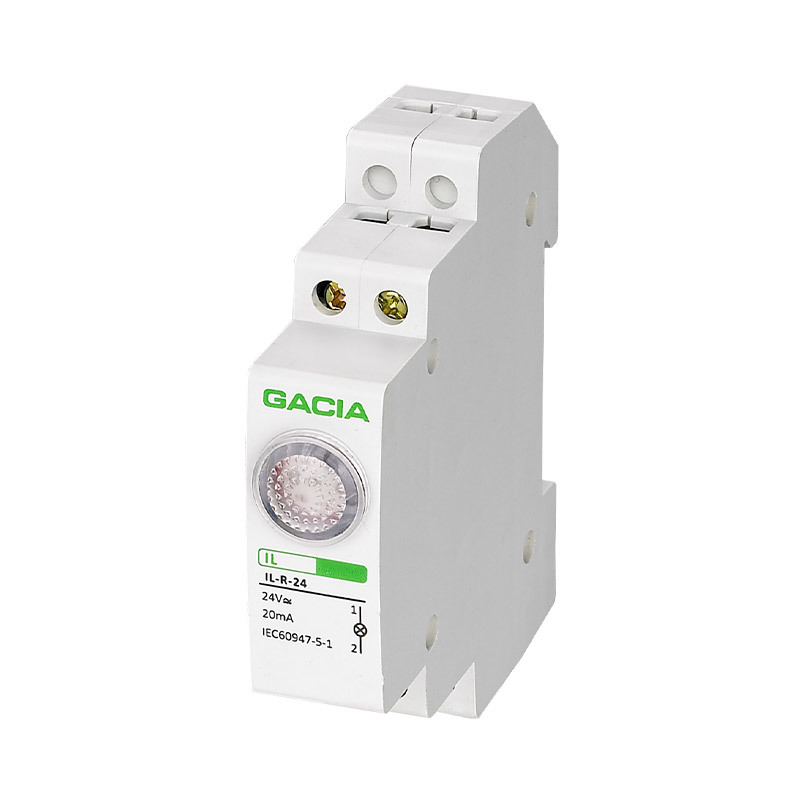

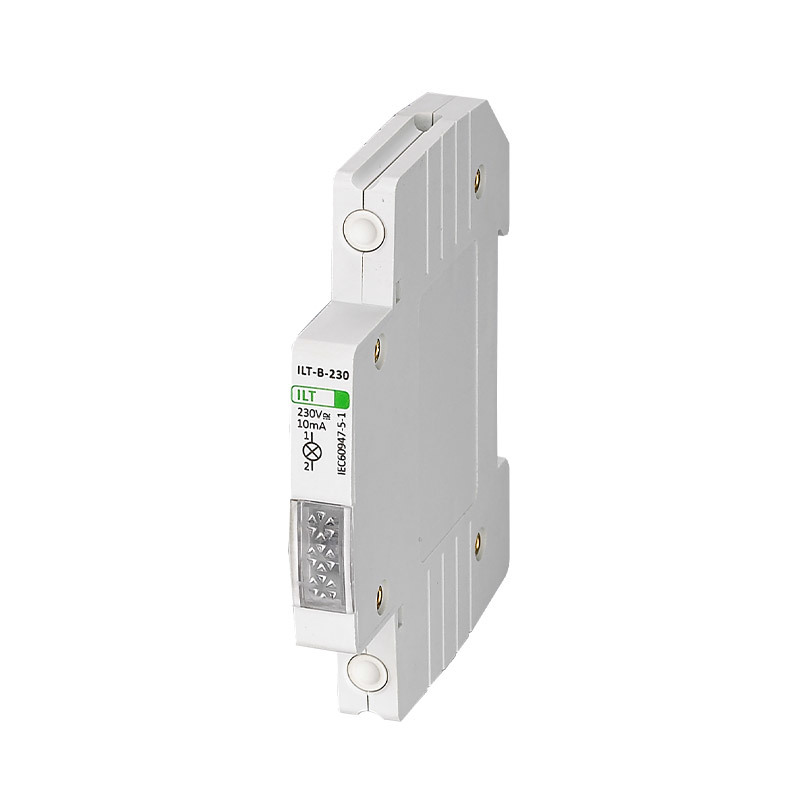

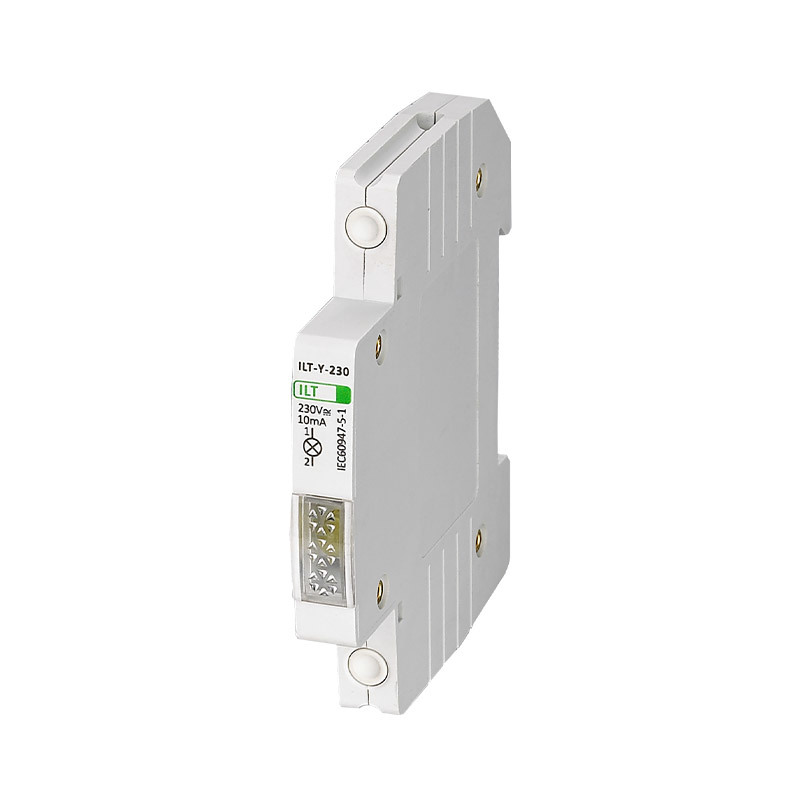

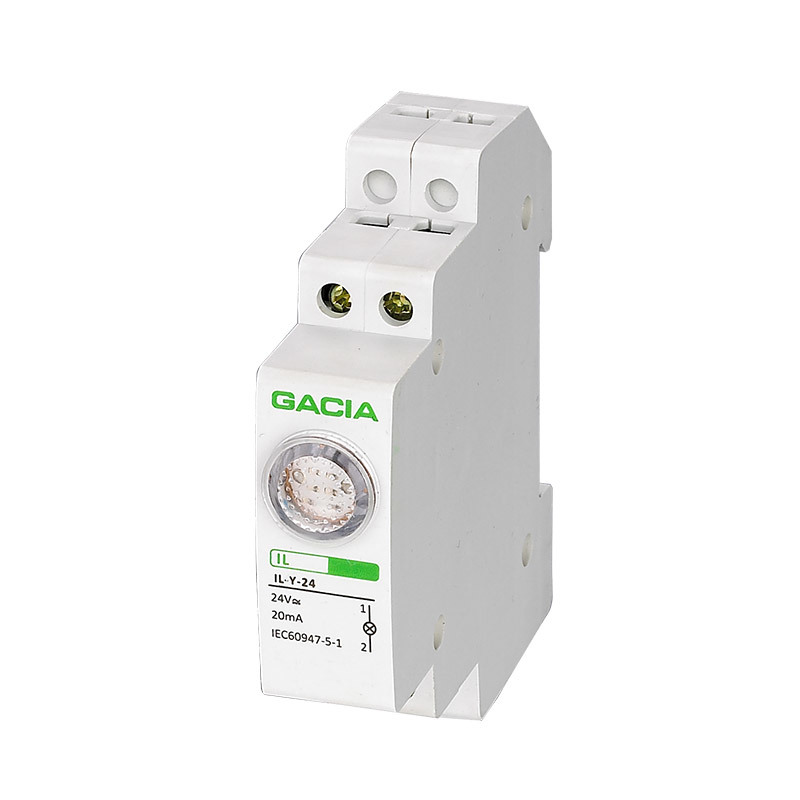

IL/ILT/ILO indicator lights are designed for clear signal display in electrical control systems, helping identify operating status, preset signals, fault conditions, and alarms at a glance. With multiple basic colors, wide AC/DC voltage options, and reliable LED performance, they provide practical visual indication for power distribution, automation panels, and other electrical circuits. Compact and easy to integrate, they support safe, organized system management.

GACIA’s system expansion devices includes a wide range of products, helping you build a complete and safe low-voltage electrical system with greater flexibility, stronger protection, and easier integration.

Key Features

Clear Signal Display

- Signals status at a glance

- Indicates preset and fault states

- Available in five colors
Flexible Electrical Matching

- Works with AC/DC power

- Supports 6.3V to 230V

- Fits 50/60Hz systems
Reliable Panel Integration

- LED life exceeds 10,000 hours

- Rated insulation up to 500V

- Compact IP20 front-panel design

Tech Specs

Rated Insulation voltage(Ui)	500V	Ambient Temperature	+40 °C max; avg. over 24 h ≤ +35 °C
Electrical endurance	LED>10000h	Altitude	≤ 2000 m
Basic color of the signal lights	red,green,blue,yellow,white	Installation Category	II, III
Rated operational voltage	AC/DC 6.3V, AC/DC12V, AC/DC 24V, AC/DC 110V, AC/DC 230V	Atmospheric Conditions	RH ≤ 50 % at +40 °C; higher RH allowed at lower temps (e.g., 90 % at 20 °C)
Rated frequency	50/60Hz	Pollution Degree	2
Degree of protection	IP20	Mounting	35 mm DIN rail

Download

Catalog

IL Indicator Light.pdf

FAQs

1. What are indicator lights used for?

Indicator lights are used to visually display system status, including power on/off, preset conditions, faults, and alarms. They help operators quickly understand equipment conditions and improve safety and operational efficiency in electrical control systems.
2.What do different colors represent?

Different colors are typically used to represent different statuses. For example, red indicates faults or alarms, green shows normal operation, and yellow or blue can signal warnings or special conditions, depending on system design.
3.Are these indicator lights easy to install?

Yes, they are designed for quick and simple installation on control panels. Their compact structure allows easy integration into standard panel layouts without requiring complex tools or modifications.
